EP3-24VAC

EP3-24VAC | Kele | Pneumatics & Fittings

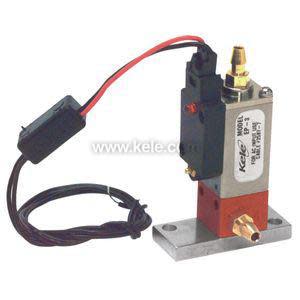

Electropneumatic Air Valve 24VAC included Transformer

Brand:Kele

MPN:EP3-24VAC

SKU:EP3-24VAC

List Price:

$259.00

Today's Price:

$134.68



Availability: 104 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Type

Valve

Connection Type

Barbed

Pressure Range

0-50 psig

Connection Configuration

3-Way

Connection Size

1/4 in

product series specifications

    Supply Voltage:
    :
  • EP3-24VAC 24 VAC, +15%, -10%
    :
  • EP3-24VDC 24 VDC, +15%, -10%
    :
  • EP3-120VAC 120 VAC, +15%, -10%
    Supply Watts:
  • 2.5 W
    Supply Current:
    :
  • EP3-24VAC, -24VDC 104 mA continuous duty, 157 mA inrush
    :
  • EP3-120VAC 20 mA continuous duty, 157 mA inrush
    Connections:
  • Three barbed fittings for 1/4" OD poly tubing
    Cv:
  • 0.04
    Override:
  • Momentary pushbutton
    Indicator:
  • Red LED - on when energized
    Air Capacity:
  • 500 scim (0.29 scfm) @ 15 psig (103 kPa)
    Operating Temperature:
  • 0° to 122‚Ñâ (-18° to 50‚ÑÉ)
    Pressure Range:
  • 0-50 psig (0-345 kPa)
    Wiring:
  • 16" (40.6 cm) leads with 24VAC/24VDC converter
    Weight:
  • 0.15lb (0.07 Kg)
    Approvals:
  • UL-recognized component file MH46383
    Warranty:
  • 1 year

product series features

  • LED indication
  • Integral mounting plate
  • Low capacity
  • Manual override
  • Universal porting
  • N.C., N.O., diverter, or selector determined by piping

more information & related documents

Series Description

The EP3 Series electric/pneumatic three-way air valves is a family of industrial quality, two-position, three-way solenoid air valves with a capacity of 500 scim. These 3 way air valves have proven their performance in high-demand HVAC applications and building automation systems, BAS. With each air valve, a momentary manual override push button provides operation without closing the electrical circuit. An LED enables visual indication of the air valve's status. The valve can be mounted in any position with body mounting holes or with the mounting plate furnished with the valve. Each EP3 also comes with 16 in lead wires and three barbed fittings for 1/4 in plastic tubing.

Kele Description

EP AIR VALVE 24VAC INCL XFMR

Manufacturer

Kele
