FILN05-S | Kele | Pneumatics & Fittings
DISP.FILTER W/STRAIGHT FITTING
Brand:Kele
MPN:FILN05-S
SKU:FILN05-S
List Price:
$61.81
Today's Price:
$32.14
Log in for customized pricingproduct specifications
Connection Size
1/4 in
Type
Filter
Connection
Barbed
Pressure Range
0 - 100 PSIG
product series specifications
Connections:
FILN05-B: Plastic barbs, 90 degree, for 1/4" OD poly tubing
FILN05: Plastic barbs, straight, for 1/4" OD poly tubing
FILN05-R: Replacement filter, no barb fittings
Air Capacity: 1.4 scfm, 1.5 psid
Operating Temperature: 32° to 200°F (0° to 93°C)
Maximum Pressure Rating: 100 psi (689 kPa) @ 100°F (38°C)
Materials of Construction: Transparent nylon housing, HEPA Microflex™ filter
Dimensions: 2.8"L x 1"DIA (7.0 x 2.5 cm)
Weight: 0.3 oz (8.5 g)
Warranty: 1 year
more information & related documents
Series Description

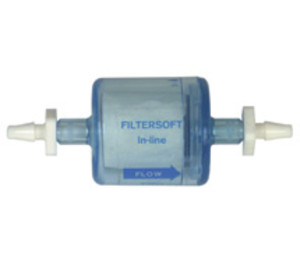

The FILN05 Series inline disposable filters is a family of final device pneumatic air filters with straight plastic barb fittings for 1/4 in OD poly tubing. The FILN05-B inline air filters come with 90 degrees bent fittings. The microfibre disposable filter unit consists of a HEPA Microflex™ filter tube permanently bonded into a sealed nylon casting, ideal for building automation systems, BAS, and HVAC applications. As the HEPA filter shows signs of contamination, simply remove and replace. A replacement model FILN05-R is available without the barb fittings. NOTE: Not for use with synthetic lubricants.
Kele Description
DISP.FILTER W/STRAIGHT FITTING
Manufacturer
Kele
