Home|Products|Pneumatics & Fittings|TP970 Series|14004407-910/U
14004407-910

14004407-910/U | Honeywell | Pneumatics & Fittings

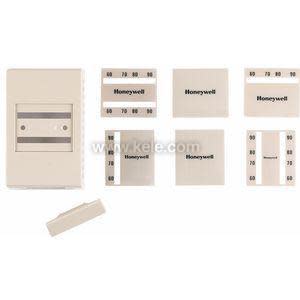

Beige Chrome Cover, Setpoint Slot Cover Both Horizontal and Vertical

Brand:Honeywell

MPN:14004407-910/U

SKU:14004407-910

List Price:

$394.00

Today's Price:

$204.88



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

installation instructions
catalog page

product specifications

Type

Cover

product series specifications

    Connections:
  • Barbs for 5/32" OD poly tubing
    Number of Pipes:
  • 2
    Sensor Element:
  • Bimetal
    Setpoints:
  • Single
    Throttling Range:
  • Adjustable, 2° to 10‚Ñâ (1° to 5‚ÑÉ), factory set at 4‚Ñâ (2‚ÑÉ)
    Remote Bulb:
  • No
    Air Consumption:
  • 0.011 scfm (5.2 mL/s)
    Operating Temperature:
  • 100‚Ñâ (37.8‚ÑÉ) maximum
    Mounting:
  • Wall
    Maximum Operating Pressure:
  • 25 psi (170 kPa)
    Dimensions:
  • 3.3"H x 2.0"W x 1.6"D (8.3 x 5.2 x 4.1 cm)
    Weight:
  • 0.35 lb (0.2 kg) to 1.3 lb (0.6 kg) depending on kit/cover
    Warranty:
  • 1 year

product series features

  • Shock-resistant, suspension-mounted thermostats provide dependable performance and responsiveness
  • Pilot operated for high capacity
  • Direct Acting (DA) and Reverse Acting (RA) models
  • Adapter plate kits cover existing thermostat wallmark
  • Backplate has molded air connections-no separate fittings needed
  • Universal locking cover with satin chrome finish and horizontal, vertical, or blank window options

more information & related documents

Series Description

The Honeywell TP970 Series pneumatic thermostat is a two-pipe, single-setpoint thermostat used to provide proportional control of pneumatic valves and damper actuators in heating and air conditioning systems. Replacement kits are available for Johnson Controls, Powers, Robertshaw, Barber-Colman, and older Honeywell two-pipe pneumatic thermostats.

Kele Description

BEIGE CHROME CVR,SETPT SLOT CVR BOTH HORZ/VERT

Manufacturer

Honeywell

Related Documents

PDF - TP970 Installation InstructionsTP970 Installation Instructions
