14004406-910/U | Honeywell | Pneumatics & Fittings

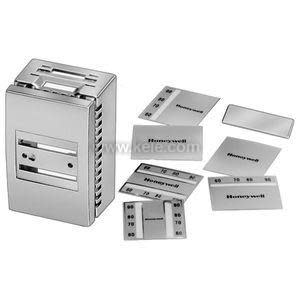

Satin Chrome Cover, Setpoint Both Horizontal And Vertical
Brand:Honeywell
MPN:14004406-910/U
SKU:14004406-910
List Price:
$260.00
Today's Price:
$135.20
Availability: Lead time > 15 days. See alternatives below or chat with Sales.
product specifications
Type
Cover
product series specifications
- Connections:
- Barbs for 5/32" OD poly tubing
- Number of Pipes:
- 2
- Sensor Element:
- Bimetal
- Setpoints:
- Single
- Throttling Range:
- Adjustable, 2° to 10‚Ñâ (1° to 5‚ÑÉ), factory set at 4‚Ñâ (2‚ÑÉ)
- Remote Bulb:
- No
- Air Consumption:
- 0.011 scfm (5.2 mL/s)
- Operating Temperature:
- 100‚Ñâ (37.8‚ÑÉ) maximum
- Mounting:
- Wall
- Maximum Operating Pressure:
- 25 psi (170 kPa)
- Dimensions:
- 3.3"H x 2.0"W x 1.6"D (8.3 x 5.2 x 4.1 cm)
- Weight:
- 0.35 lb (0.2 kg) to 1.3 lb (0.6 kg) depending on kit/cover
- Warranty:
- 1 year
product series features
- Shock-resistant, suspension-mounted thermostats provide dependable performance and responsiveness
- Pilot operated for high capacity
- Direct Acting (DA) and Reverse Acting (RA) models
- Adapter plate kits cover existing thermostat wallmark
- Backplate has molded air connections-no separate fittings needed
- Universal locking cover with satin chrome finish and horizontal, vertical, or blank window options
more information & related documents
Series Description
The Honeywell TP970 Series pneumatic thermostat is a two-pipe, single-setpoint thermostat used to provide proportional control of pneumatic valves and damper actuators in heating and air conditioning systems. Replacement kits are available for Johnson Controls, Powers, Robertshaw, Barber-Colman, and older Honeywell two-pipe pneumatic thermostats.
Kele Description
SATIN CHROME CVR,STPT BOTH HORZ AND VERT
Manufacturer
Honeywell
