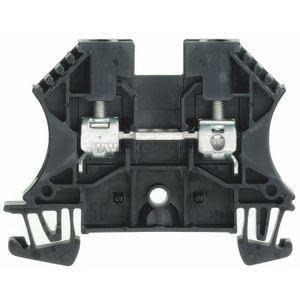

Black two-pole terminal block with screw connectors

1020110000 | Weidmuller Interconnections | Panel Fabrication

4mm Black Din Terminal Block 600 Volt 25 Amps 2 Position

Brand:Weidmuller Interconnections

MPN:1020110000

SKU:WDU4-2P-BK

List Price:

$1.56

Today's Price:

$0.81

product datasheet

installation instructions

product specifications

Weight

0.06

Block Function

Feed -through

Terminal Type

Screw connection

Voltage Rating

600 V

Primary Color

Black

Current Rating

25 A

Rated Cross Section

4 mm²

Terminal Block Type

Feed-Through

Mount

Snap-On

Number of Positions

product series specifications

Continuous operating temp., min.: -60 °C

Material: Wemid

UL 94 flammability rating: V-0

Certificate No. (ATEX): DEMKO14ATEX1338U

Certificate No. (IECEX): IECEXULD14.0005U

Max. voltage (ATEX): 690 V

Current (ATEX): 32 A

Wire cross-section max. (ATEX): 4 mm≤

Max. voltage (IECEX): 690 V

Current (IECEX): 32 A

Wire cross-section max. (IECEX): 4 mm≤

Operating temperature range: For operating temperature range see EC

Design Test Certificate / IEC Ex-Certificate of Conformity

Dimensions: 0.24"W x 2.362"H x 1.831"D

Weight: 9g

product series features

Screw connection with clamping yoke technology
Feed-through terminal blocks
Pluggable cross-connection

more information & related documents

Series Description

The Weidmuller WDU Series terminal blocks have high reliability, and a variety of designs with clamping yoke connections make planning easier and optimizes operational safety. Klippon® Connect provides a proven response to a range of different requirements.

Kele Description

4MM BLACK DIN TERM 600V 25A 2POS

Manufacturer

Weidmuller Interconnections
