1SNK506062R0000 | TE Connectivity | Panel Fabrication

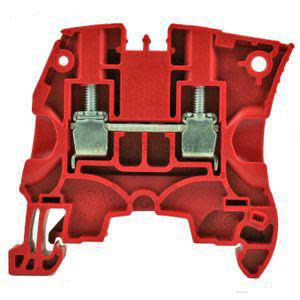

Din Terminal 6mm - Red
Brand:TE Connectivity
MPN:1SNK506062R0000
SKU:ZS6-RD
List Price:
$4.36
Today's Price:
$2.27
product specifications
Mounting
DIN Rail
Type
Din
Current Rating
30 A
Voltage Rating
600 V
Primary Color
Red
Terminal Block Type
Feed-Through
Connection Type
Screw Clamp
product series specifications
Rated Voltage: 600 VAC/VDC max.
Rated Current: ZS6: 30A, ZS10: 42A
Rated Wire Size: ZS6: 24-14 AWG, ZS10: 20-12 AWG
Operating Temperature: -67° to 212° (-55° to 100°)
Approvals: UL File #E60645; CSA #2329965, CE, RoHs
Warranty: 1 year
product series features
- Reverse mounting error-free; no short circuit possible
- 20% more marking surface
- Double deck blocks have two marking areas
- One (1) end section and one (1) circuit separator
- Complete set of accessories
more information & related documents
Series Description
The ABB Model ZS6 and ZS10 DIN rail terminal blocks offer a modular design for flexibility in layout and reduced installation time. Their unique profile allows for easy and ergonomic mounting. Marking surfaces can be read clearly from any angle in an enclosure and are larger than standard markers in the industry.The two terminal blocks central channels-aligned from 4mm-12AWG up to 16mm-4AWG terminal blocks offer flexibility of use. They offer common and polarity distribution with JB screwless jumper bars. One unique end section and circuit separator fits all feed-through terminal blocks.
Kele Description
DIN TERMINAL 6MM - RED
Manufacturer
TE Connectivity
Related Documents
ZS10 Datasheet
