1SNA118495R1700 | TE Connectivity | Panel Fabrication

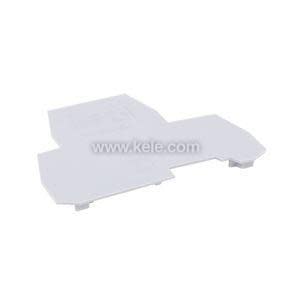

Circuit Separator Double Stack Gray
Brand:TE Connectivity
MPN:1SNA118495R1700
SKU:SCF6D
List Price:
$7.00
Today's Price:
$3.64
Log in for customized pricingproduct specifications
Related Accessory
Circuit Separator
Terminal Type
Double Stack
Primary Color
Gray
Type
Circuit Double Stack
Accessory Type
Double Stack
Mount
DIN rail
product series specifications
Rated Voltage: 600 VAC/VDC max.
Rated Current: M4/6: 32A UL, M6/8: 41A UL
Rated Wire Size: M4/6: 22-10 AWG, M6/8: 22-8 AWG
Approvals: UL File #E60645; CSA, CE, RoHs
Warranty: 1 year
product series features
- Wire secured by ribbed compression clamp
- Universal DIN rail mounting
- Reduced installation time
- Block removable without displacing adjacent blocks
- Various marking options
more information & related documents
Series Description
The TE Connectivity Model M4/6 and M6/8 DIN rail terminal blocks offer a modular design for flexibility in layout and reduced installation time. Unique marker holders provide optional top- or side-mount marking capability. The Model M4/6 offers maximum circuit density while the Model M6/8 offers the convenience of larger screws for conventional screwdriver installation.
Kele Description
CIRCUIT SEPARATOR DOUBLE STACK GRAY
Manufacturer
TE Connectivity
