1SNA165114R1700 | TE Connectivity | Panel Fabrication

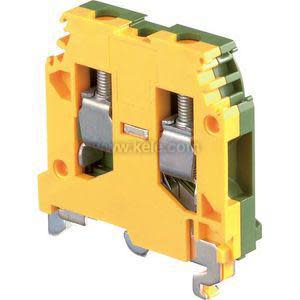

M6/8.P Grounding Terminal
Brand:TE Connectivity
MPN:1SNA165114R1700
SKU:M6/8P TERMINAL
List Price:
$23.38
Today's Price:
$12.16
Log in for customized pricingproduct specifications
Voltage Rating
600 V
Primary Color
Green-Yellow
Type
Lug
Connection
Screw Clamp
Current Rating
41 A
Terminal Block Type
Ground
Mount
DIN rail
product series specifications
Rated Voltage: 600 VAC/VDC max.
Rated Current: M4/6: 32A UL, M6/8: 41A UL
Rated Wire Size: M4/6: 22-10 AWG, M6/8: 22-8 AWG
Approvals: UL File #E60645; CSA, CE, RoHs
Warranty: 1 year
product series features
- Wire secured by ribbed compression clamp
- Universal DIN rail mounting
- Reduced installation time
- Block removable without displacing adjacent blocks
- Various marking options
more information & related documents
Series Description
The TE Connectivity Model M4/6 and M6/8 DIN rail terminal blocks offer a modular design for flexibility in layout and reduced installation time. Unique marker holders provide optional top- or side-mount marking capability. The Model M4/6 offers maximum circuit density while the Model M6/8 offers the convenience of larger screws for conventional screwdriver installation.
Kele Description
GROUNDING LUG GREEN YELLOW FOR M6/8
Manufacturer
TE Connectivity
