M4/6-YW | TE Connectivity | Panel Fabrication
Din Terminal 6mm(.238In) - Yellow
Brand:TE Connectivity
MPN:M4/6-YW
SKU:M4/6-YW
List Price:
$4.47
Today's Price:
$2.33
product specifications
Mounting
DIN Rail
Type
Din
Block Function
Feed-through
Terminal Type
Screw Clamp
Rated Cross Section
4 mm²
Current Rating
32 A
Voltage Rating
600 V
Primary Color
Yellow
Terminal Block Type
Feed-Through
product series specifications
- Rated Voltage:
- 600 VAC/VDC max.
- Rated Current:
- M4/6 :
- 32A UL
- M6/8 :
- 41A UL
- Rated Wire Size:
- M4/6:
- 22-10 AWG
- M6/8 :
- 22-8 AWG
- Approvals:
- ULFile #E60645; CSA, CE, RoHs
- Warranty:
- 1 year
product series features
- Wire secured by ribbed compression clamp
- Universal DIN rail mounting
- Reduced installation time
- Block removable without displacing adjacent blocks
- Various marking options
more information & related documents
Series Description

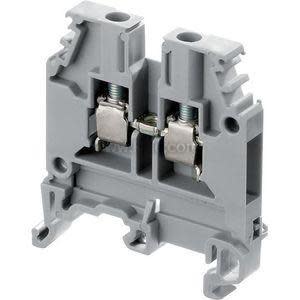

The TE Connectivity Model M4/6 and M6/8 DIN rail terminal blocks offer a modular design for flexibility in layout and reduced installation time. Unique marker holders provide optional top- or side-mount marking capability. The Model M4/6 offers maximum circuit density while the Model M6/8 offers the convenience of larger screws for conventional screwdriver installation.
Kele Description
DIN TERMINAL 6MM(.238IN) - YELLOW
Manufacturer
TE Connectivity
