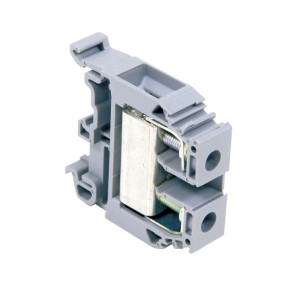

Close-up of a grey DIN rail terminal block with a metal clamp and two screw holes.

M16/12 | TE Connectivity | Panel Fabrication

DIN TERMINAL 12 MM (NP2# 188517)

Brand:TE Connectivity

MPN:M16/12

SKU:M16/12

List Price:

$16.18

Today's Price:

$8.42

catalog page

product specifications

Voltage Rating

1,000 V

Primary Color

Gray

Connection

Screw Clamp

Current Rating

76 A

Terminal Block Type

Feed-Through

Mount

DIN rail

product series specifications

Rated Voltage: 600 VAC/VDC max.

Rated Current: M4/6: 32A UL, M6/8: 41A UL

Rated Wire Size: M4/6: 22-10 AWG, M6/8: 22-8 AWG

Approvals: UL File #E60645; CSA, CE, RoHs

Warranty: 1 year

product series features

Wire secured by ribbed compression clamp
Universal DIN rail mounting
Reduced installation time
Block removable without displacing adjacent blocks
Various marking options

more information & related documents

Series Description

The TE Connectivity Model M4/6 and M6/8 DIN rail terminal blocks offer a modular design for flexibility in layout and reduced installation time. Unique marker holders provide optional top- or side-mount marking capability. The Model M4/6 offers maximum circuit density while the Model M6/8 offers the convenience of larger screws for conventional screwdriver installation.

Kele Description

DIN TERMINAL 12 MM

Manufacturer

TE Connectivity
