17666401 | TE Connectivity | Panel Fabrication

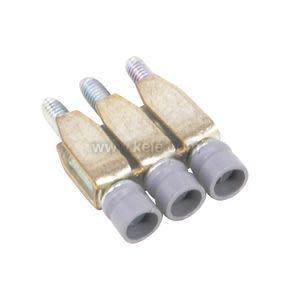

3 pole, type BJM16, 32 Amp assembled jumber bar with IP20 protection.
Brand:TE Connectivity
MPN:17666401
SKU:BJMI6-3
List Price:
$15.00
Today's Price:
$7.80
Log in for customized pricingproduct specifications
Related Accessory
Jumper Bar
Number of Poles
3
Type
Jumper Bar
Current Rating
32 A
Accessory Type
Connector
Mount
DIN rail
product series specifications
Rated Voltage: 600 VAC/VDC max.
Rated Current: M4/6: 32A UL, M6/8: 41A UL
Rated Wire Size: M4/6: 22-10 AWG, M6/8: 22-8 AWG
Approvals: UL File #E60645; CSA, CE, RoHs
Warranty: 1 year
product series features
- Wire secured by ribbed compression clamp
- Universal DIN rail mounting
- Reduced installation time
- Block removable without displacing adjacent blocks
- Various marking options
more information & related documents
Series Description
The TE Connectivity Model M4/6 and M6/8 DIN rail terminal blocks offer a modular design for flexibility in layout and reduced installation time. Unique marker holders provide optional top- or side-mount marking capability. The Model M4/6 offers maximum circuit density while the Model M6/8 offers the convenience of larger screws for conventional screwdriver installation.
Kele Description
3 POLE JUMPER BAR BJMI6
