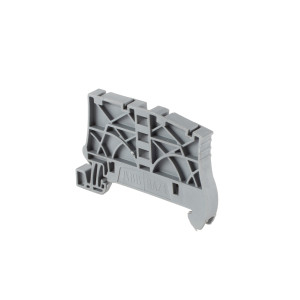

Grey plastic DIN rail end bracket with reinforcing ribs

BAZ1 | TE Connectivity | Panel Fabrication

END STOP SPRING CLAMP

Brand:TE Connectivity

MPN:BAZ1

SKU:BAZ1

List Price:

$4.41

Today's Price:

$2.29

catalog page

product specifications

Related Accessory

End Stop

Accessory Type

Spring Clamp

Block Function

End Stop

Terminal Type

Spring Clamp

Primary Color

Dark Gray

Type

Accessory

product series specifications

Rated Voltage: 600 VAC/VDC max.

Rated Current: M4/6: 32A UL, M6/8: 41A UL

Rated Wire Size: M4/6: 22-10 AWG, M6/8: 22-8 AWG

Approvals: UL File #E60645; CSA, CE, RoHs

Warranty: 1 year

product series features

Wire secured by ribbed compression clamp
Universal DIN rail mounting
Reduced installation time
Block removable without displacing adjacent blocks
Various marking options

more information & related documents

Series Description

The TE Connectivity Model M4/6 and M6/8 DIN rail terminal blocks offer a modular design for flexibility in layout and reduced installation time. Unique marker holders provide optional top- or side-mount marking capability. The Model M4/6 offers maximum circuit density while the Model M6/8 offers the convenience of larger screws for conventional screwdriver installation.

Kele Description

END STOP SPRING CLAMP

Manufacturer

TE Connectivity
