6G38-TSKK-DIN | Marathon | Panel Fabrication

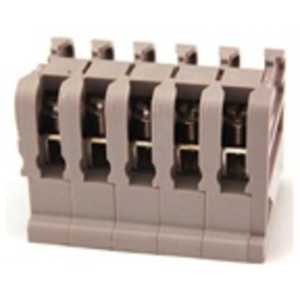

6G38 TSKK DIN Sectional Terminal Block, 600 Volt, 40 Amp

Brand:Marathon

MPN:6G38-TSKK-DIN

SKU:6G38-TSKK-DIN

List Price:

$7.07

Today's Price:

$3.68

Availability: 5,085 In Stock

product datasheet

catalog page

product specifications

Mounting

DIN Rail

Type

Din

Current Rating

40 A

Voltage Rating

600 V

Terminal Block Type

Sectional

Connection Type

Screw Connection

product series specifications

Rated Voltage: 600 VAC/VDC max.

Rated Current: 40A

Rated Wire Size: 22-10 AWG

Connections: Tin-plated copper screw

Operating Temperature: -40° to 257°F (-40° to 125°C)

Circuits Per Foot: 32

Approvals: UL File #E62806, CSA certified, File #LR19766, RoHS

Warranty: 1 year

product series features

Sectional design for layout flexibility
Channel mounting
32 circuits per foot
Kant Kut wiring connectors
Touch-proof design

more information & related documents

Series Description

Model 6G38 sectional terminal blocks are individually molded blocks that can be assembled to produce a terminal strip for the required number of circuits. Each terminal block is a proven performer for Building Automation Systems, BAS, applications. The larger size of these 3/8 in blocks makes wiring terminations easier for both small and large wire gauges. The Model 6G38-TSKK-C is channel mounted and can be used in conjunction with the Model 6W30 sectional fuse holder.

Kele Description

DIN TERMINAL 3/8 IN

Manufacturer

Marathon
