HW-DB | IDEC | Panel Fabrication
DUMMY BLOCK
Brand:IDEC
MPN:HW-DB
SKU:HW-DB
List Price:
$1.01
Today's Price:
$0.53
product specifications
Type
Accessory
Related Accessory
Dummy Block
Accessory Type
Switch
product series specifications
- Contact Rating:
- 10A, 600 VAC/VDC max.; 5 mA, 3 VAC/VDC minimum
- Contact Resistance:
- 50 mΩ maximum (inital value)
- Contact Material:
- Silver
- Electrical Life:
- 500,000 minimum operations
- Protection Rating:
- NEMA 1, 2, 3, 3R, 4, 4X, 12, 13, IP65
- Applicable Wire Size :
- :
- Minimum 1 x 22 AWG
- :
- Maximum 2 x 14 AWG or 1 x 12 AWG
- Mechanical Life:
- 500,000 minimum operations,
- Mounting:
- 0.878" (2.23 cm) hole
- Panel Thickness:
- Panel thickness adjustment ring, 0.04" to 0.24" (0.10 to 0.61 cm)
- Approvals:
- UL File #E68961; CSA File #LR48366, CE, RoHS
- Warranty:
- 1 year
product series features
- Rugged, oil-tight construction
- Snap-fit blocks with N.O. and N.C. contacts
- Self-cleaning silver contacts
- Durable nylon operator base
- Optional key or lever styles available
more information & related documents
Series Description

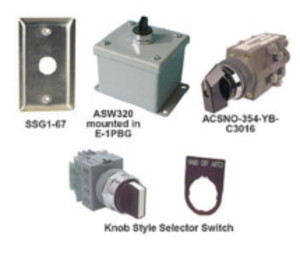

The IDEC ASW Series selector switches are general purpose selector switches for pilot duty control of electrical equipment, such as fans, pumps, compressors, or control circuits. Each selector switch has been proven to perform in high-demand applications for HVAC and building automation systems. Rely on these switches for fan control, pump control and compressor control. If a project requires multiple panels configured in the same way, consider using Kele's Custom Panel Shop. Experienced panel technicians will assemble the panels according to specifications and drawings. Then, panels are shipped to a desired location. The information is saved so additional panels can be easily ordered on demand. Stop spending time on panel fabrication and let the experts do it.
Kele Description
DUMMY BLOCK
Manufacturer
IDEC
