CX4 | Altech | Panel Fabrication

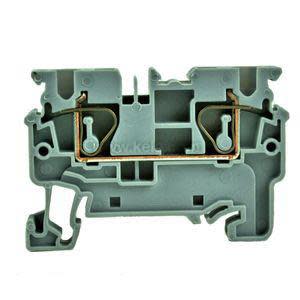

Din Terminal Gray Spring Clamp
Brand:Altech
MPN:CX4
SKU:CX4
List Price:
$3.48
Today's Price:
$1.81
product specifications
Mounting
DIN Rail
Type
Spring Clamp
Terminal Type
Spring Clamp
Current Rating
30 A
Voltage Rating
600 V
Primary Color
Gray
Terminal Block Type
Feed-Through
product series specifications
Rated Voltage: 600V
Rated Current: 30A
Rated Wire Size: 24-10 AWG
Spacing: 0.236" (6mm)
Approvals: CE; UR file E220514, CSA; RoHs
Warranty: 1 year
product series features
- Reverse mounting error-free; no short circuit possible
- Double deck blocks have two marking areas
- Side and center marking
- Complete set of accessories
more information & related documents
Series Description
The Altech Model CX4 Spring clamp DIN rail terminal blocks offer a modular design for flexibility in layout and reduced installation time. Their unique profile allows for easy and ergonomic mounting. Marking surfaces can be read clearly from any angle in an enclosure due to side and top tag provisions. They offer push in jumpers with snap off poles making customizing your jumpers easy.
Kele Description
DIN TERMINAL GRAY SPRING CLAMP
Manufacturer
Altech
CX Disconnect Datasheet
