PN1L-M2AFB002D0B | IDEC | Panel Fabrication

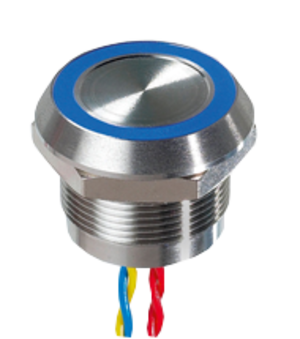

30MM PIEZO RING 12VDC BLUE

Brand:IDEC

MPN:PN1L-M2AFB002D0B

SKU:PN1L-M2AFB002D0B

List Price:

$184.67

Today's Price:

$96.03

Lead time of 8 days. Chat with Kele experts now

product specifications

Color

Blue

Type

Momentary

Diameter

30 mm

Lamp Type

LED

Function

Flush Ring

Illumination

Illuminated

product series specifications

Housing: Stainless steel 316L

Wire Sealing: Epoxy

Locking Nut: Stainless steel

Switch Effect: Pulse once activated (pulse duration depending on actuation force and speed)

Electrical Function: 1 Normally Open (NO) contact

Maximum Ratings: 1A 24V AC or DC

Electrical Life: 50 million cycles

Switch Resistance ON / OFF: ON: 10 ohms max / OFF: 5 M ohms min

LED Consumption: 10mA @ 12VDC or 24VDC

Insulation Resistance: 1000 MΩ minimum at 500VDC

Dielectric Strength: 500 Vrms 50Hz min between outputs and housing

Torque: 2.5Nm (1.8lb-ft) min - 3.0Nm (2.2lb-ft) max applied to locking nut

Operating Force: 2.00N (0.45lb) - 6.00N (1.35lb)

Operating Temperature: -40°C to +75°C (-40°F to +167°F)

Panel Thickness: 1.5mm min to 6.5mm max

Sealing: IP68 according to IEC 60529; IP69K according to DIN 40050-9

Vibration Resistance: 10-500Hz / 10g per IEC 60068-2-6

EMC: EN61000-4 & EN61000-6-2

Approvals: IEC 60529

product series features

22 or 30mm diameter stainless steel 316L housing
Sealing up to IP68 and IP69K (switches mounted on panel)
Flush mount bezel
Easy to clean metal surface
Solid state switch, no moving parts
Over 50 million lifecycles
Dot or ring illumination options
Side viewable illumination models

more information & related documents

Series Description

Designed for demanding applications where reliability is critical, IDEC Piezo switches are based on solid-state output, allowing for an exceptionally long lifespan. The flat metal surface is completely closed, preventing ingress of liquids and other contaminants, and is perfect for surface cleaning required in medical and food processing industries. High- performance sealing up to IP68 and IP69K is achieved with the single-piece construction of the switch.

Kele Description

30MM PIEZO RING 12VDC BLUE

Manufacturer

IDEC
