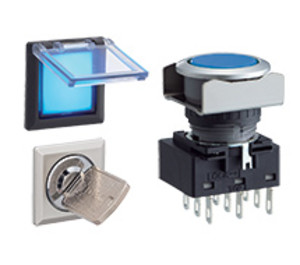

* product series image displayed

LB7BA1T5B | IDEC | Panel Fabrication

PUSH BUTTON SQU MAIN FLUSH BLK BZL SPDT BLACK

Brand:IDEC

MPN:LB7BA1T5B

SKU:LB7BA1T5B

List Price:

$40.00

Today's Price:

$20.80

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Color

Black

Type

Maintained

Diameter

16 mm

Function

Square Flush

Illumination

Non-Illuminated

product series specifications

Contact Rating: 5A, 250 VAC/VDC MAX.

Contact Resistance: 100 mΩ maximum (initial value)

Contact Material:Silver

Electrical Life:
Momentary: 2M minimum operations
Maintained: 250K minimum operations

Lamp: LED, 30k hrs, 24 VAC/VDC ±10% @ 22 mA

Protection Rating: NEMA 1, 4, 4X

Applicable Wire Size:
Minimum: 1 x 22 AWG
Maximum: 2 x 14 AWG or 1 x 12 AWG

Operating Temperature:-13° to 140°F (-25° to 60°C)

Approvals: UL File #E55996; CSA File #LR21451, CE

Warranty: 1 year

product series features

5A contact ratings
Black or metallic bezels available
Bright and clear LED illumination
Round bezel mounts in an 18mm hole
Square bezel mounts in an 18 x 18 mm hole
IP65 degree of protection

more information & related documents

Series Description

The IDEC LB Series flush mount pilot lights, pushbuttons and switches add style and safety to any application. The LB Series flush mount style of pushbuttons and pilot lights project only 2mm in front of the panel and just 34.9mm depth behind the panel. They are available in both illuminated and non-illuminated styles.

Kele Description

PUSH BUTTON SQU MAIN FLUSH BLK BZL SPDT BLACK

Manufacturer

IDEC
