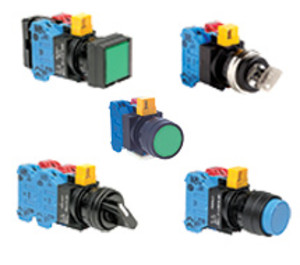

* product series image displayed

HW2BM1F20R | IDEC | Panel Fabrication

PUSH BUTTON 22 MM SQ STD MOMENTARY FLUSH 2 NO RED

Brand:IDEC

MPN:HW2BM1F20R

SKU:HW2BM1F20R

List Price:

$70.18

Today's Price:

$36.49

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Color

Red

Type

Momentary

Contact Blocks

2NO

Diameter

22 mm

Function

Square Flush

Illumination

Non-Illuminated

product series specifications

Contact Rating: 10A, 600 VAC/VDC max.

Contact Resistance: 50 mΩ maximum (initial value)

Contact Material: Silver

Electrical Life: 500k minimum operations

Protection Rating: NEMA 1, 4, 4X

Applicable Wire Size:

Minimum: 1 x 22 AWG

Maximum: 2 x 14 AWG or 1 x 12 AWG

Operating Temperature: -13° to 122°F (-25° to 50°C)

Approvals: UL File #E68961; CSA File #LR92374, CE

Warranty: 1 year

product series features

Locking lever removable contact blocks
Non-illuminated or LED illumination
Self-cleaning rolling action contacts
IP65 protection

more information & related documents

Series Description

The IDEC HW Series are IEC style devices that feature tamperproof mounting and construction, modular stackable contact blocks with IP20 fingersafe screw terminals, and pure silver contacts with a self cleaning action. Models include illuminated and non-illuminated pushbuttons in both round and square flush and extended styles.

Kele Description

PUSH BUTTON 22 MM SQ STD MOMENTARY FLUSH 2 NO RED

Manufacturer

IDEC
