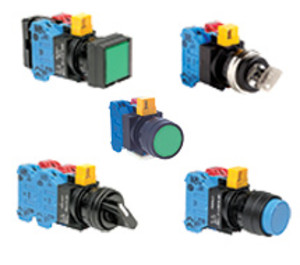

* product series image displayed

HW1K-2AF11 | IDEC | Panel Fabrication

SELECTOR SWITCH, KEY, 22MM, 2 POSITION, MAINTAINED, PLASTIC BEZEL, 1 NO-1 NC CONTACT

Brand:IDEC

MPN:HW1K-2AF11

SKU:HW1K-2AF11

List Price:

$145.91

Today's Price:

$75.87

catalog page

Lead time of 10 days. Chat with Kele experts now

product specifications

Type

Keyed

Contact Blocks

1NO-1NC

Diameter

22 mm

Function

Maintained

Illumination

Non-Illuminated

product series specifications

Contact Rating: 10A, 600 VAC/VDC max.

Contact Resistance: 50 mΩ maximum (initial value)

Contact Material: Silver

Electrical Life: 500k minimum operations

Protection Rating: NEMA 1, 4, 4X

Applicable Wire Size:

Minimum: 1 x 22 AWG

Maximum: 2 x 14 AWG or 1 x 12 AWG

Operating Temperature: -13° to 122°F (-25° to 50°C)

Approvals: UL File #E68961; CSA File #LR92374, CE

Warranty: 1 year

product series features

Locking lever removable contact blocks
Non-illuminated or LED illumination
Self-cleaning rolling action contacts
IP65 protection

more information & related documents

Series Description

The IDEC HW Series are IEC style devices that feature tamperproof mounting and construction, modular stackable contact blocks with IP20 fingersafe screw terminals, and pure silver contacts with a self cleaning action. Models include illuminated and non-illuminated pushbuttons in both round and square flush and extended styles.

Kele Description

SELECTOR SWITCH, KEY, 22MM, 2 POSITION, MAINTAINED, PLASTIC BEZEL, 1 NO-1 NC CONTACT

Manufacturer

IDEC
