AYW410-R | IDEC | Panel Fabrication
PUSH-PULL 1NO MUSHROOM SWITCH
Manufacturer:IDEC
MPN:AYW410-R
SKU:AYW410-R
List Price:
146.00
Today's Price:
81.76
add to cart
product family specifications
Contact Rating
10A, 600 VAC/VDC max.; 5mA, 3 VAC/VDC minimum
Contact Resistance
50 mΩ maximum (inital value)
Contact Material
Silver
Electrical Life
500,000 minimum operations
Protection Rating
NEMA 1, 2, 3R, 4, 4X, 12, 13
Insulation
600V
Applicable Wire Size
Minimum 1 x 22 AWG
Maximum 2 x 14 AWG or 1 x 12 AWG
Mechanical Life
500,000 minimum operations
Operating Temperature
-13° to 122℉ (-25° to 50℃)
Panel Thickness
Panel thickness adjustment ring, 0.04" to 0.24" (0.10 to 0.61 cm)
Approvals
UL File #E68961; CSA File #LR48366, CE, RoHs
Warranty
1 year
product family features

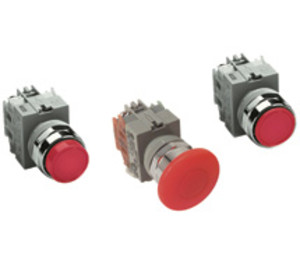

- Flush, extended, or mushroom style available
- Snap-fit blocks with N.O. and N.C. contacts
- Self-cleaning silver contacts
- Rugged, oil-tight construction
more information & related documents
Family Description
The ABW Series and AOW Series push button switches are for manual control of fans, pumps, compressors, or control circuits. This variety of push button switch options has proven its reliability in fan control, pump control, and compressor control applications for HVAC applications and building automation systems, BAS. If a project requires assembly of multiple panels configured in the same way, consider using Kele's Custom Panel Shop. Experienced panel technicians will assemble the panels according to specifications and drawings. Then, panels are shipped to a desired location. The information is saved so additional panels can be easily ordered on demand. Stop spending time on panel fabrication and let the experts do it.
Kele Description
PUSH-PULL 1NO MUSHROOM SWITCH
Manufacturer
IDEC
