AYD301NUR | IDEC | Panel Fabrication
30MM ESTOP PUSH PULL 1NC RED
Brand:IDEC
MPN:AYD301NUR
SKU:AYD301NUR
List Price:
$170.93
Today's Price:
$88.88
Log in for customized pricingproduct specifications
Color
Red
Contact Blocks
1NC
Diameter
30 mm
Function
Estop
Illumination
Non-Illuminated
product series specifications
Contact Rating: 10A, 600 VAC/VDC max.; 5 mA, 3 VAC/VDC minimum
Contact Resistance: 50 mΩ maximum (initial value)
Contact Material: Silver
Electrical Life: 500,000 minimum operations
Protection Rating: NEMA 1, 2, 3, 3R, 4, 4X, 12, 13, IP65
Applicable Wire Size: Minimum 1 x 22 AWG, Maximum 2 x 14 AWG or 1 x 12 AWG
Mechanical Life: 500,000 minimum operations
Mounting: 0.878" (2.23 cm) hole
Panel Thickness: Panel thickness adjustment ring, 0.04" to 0.24" (0.10 to 0.61 cm)
Approvals: UL File #E68961; CSA File #LR48366, CE, RoHS
Warranty: 1 year
product series features
- Rugged, oil-tight construction
- Snap-fit blocks with N.O. and N.C. contacts
- Self-cleaning silver contacts
- Durable nylon operator base
- Optional key or lever styles available
more information & related documents
Series Description

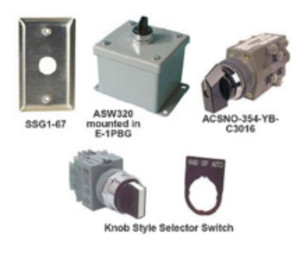

The IDEC ASW Series selector switches are general purpose selector switches for pilot duty control of electrical equipment, such as fans, pumps, compressors, or control circuits. Each selector switch has been proven to perform in high-demand applications for HVAC and building automation systems. Rely on these switches for fan control, pump control and compressor control. If a project requires multiple panels configured in the same way, consider using Kele's Custom Panel Shop. Experienced panel technicians will assemble the panels according to specifications and drawings. Then, panels are shipped to a desired location. The information is saved so additional panels can be easily ordered on demand. Stop spending time on panel fabrication and let the experts do it.
Kele Description
30MM ESTOP PUSH PULL 1NC RED
Manufacturer
IDEC
Related Documents
ASW series installation manual
