ABW111-BRG | IDEC | Panel Fabrication

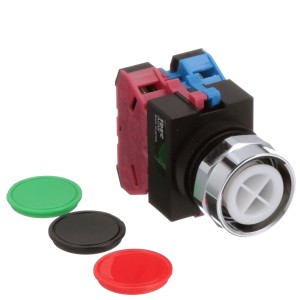

Pushbutton 22mm Momentary Metal Round 1 NO -1 NC Contact Screw Terminal - 3 Colors
Brand:IDEC
MPN:ABW111-BRG
SKU:ABW111
List Price:
$60.49
Today's Price:
$31.45
product specifications
Type
Momentary
Diameter
22 mm
Function
Round Flush
Illumination
Non-Illuminated
Contact Blocks
1NO-1NC
product series specifications
Contact Rating: 10A, 600 VAC/VDC max.; 5mA, 3 VAC/VDC minimum
Contact Resistance: 50 mO maximum (inital value)
Contact Material: Silver
Electrical Life: 500,000 minimum operations
Protection Rating: NEMA 1, 2, 3R, 4, 4X, 12, 13
Insulation: 600V
Applicable Wire Size: Minimum: 1 x 22 AWG
Maximum: 2 x 14 AWG or 1 x 12 AWG
Mechanical Life: 500,000 minimum operations
Operating Temperature: -13° to 122°F (-25° to 50°C)
Panel Thickness: Panel thickness adjustment ring, 0.04" to 0.24" (0.10 to 0.61 cm)
Approvals: UL File #E68961; CSA File #LR48366, CE, RoHs
Warranty: 1 year
product series features
- Flush, extended, or mushroom style available
- Snap-fit blocks with N.O. and N.C. contacts
- Self-cleaning silver contacts
- Rugged, oil-tight construction
more information & related documents
Series Description
The ABW Series and AOW Series push button switches are for manual control of fans, pumps, compressors, or control circuits. This variety of push button switch options has proven its reliability in fan control, pump control, and compressor control applications for HVAC applications and building automation systems, BAS. If a project requires assembly of multiple panels configured in the same way, consider using Kele's Custom Panel Shop. Experienced panel technicians will assemble the panels according to specifications and drawings. Then, panels are shipped to a desired location. The information is saved so additional panels can be easily ordered on demand. Stop spending time on panel fabrication and let the experts do it.
Kele Description
PUSH BUTTON 1NO 1NC MOMENTARY FLUSH - 3 COLORS
Manufacturer
IDEC
Related Documents
ABW, AOW Series Datasheet
