MCB-10

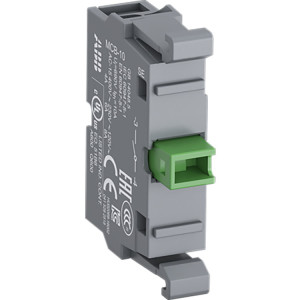

* product series image displayed

MCB-10 | ABB | Panel Fabrication

CONTACT BLOCK, 1 NO, WITHOUT HOLDER

Brand:ABB

MPN:MCB-10

SKU:MCB-10

List Price:

$19.49

Today's Price:

$10.13



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Type

Contact Block

Contact Blocks

1NO

product series specifications

    Relay Rating:
  • AC: 120V, 6A; 240V, 3A; 480V, 1.5A; 600V, 1.2A DC: 120V,0.55A; 240V, 0.27A; 480V, 0.1A; 600V, 0.1A
    Rated Insulation Voltage:
  • 600V
    Mechanical Life:
  • 10 million operations (contact block)
    Terminals:
  • #14-20 AWG
    Contact Material:
  • Silver
    Mounting:
  • 0.874" (2.25 cm) hole
    Operating Temperature:
  • -13° to 122‚Ñâ (-25° to 50‚ÑÉ)
    Panel Thickness:
  • 0.059" to 0.236" (0.15 to 0.6 cm)
    Protection Rating:
  • NEMA type 1, 3R, 4, 4X, 12, 13
    Approvals:
  • UL File #E76003; CSA File #LR19700
    Warranty:
  • 1 year

product series features

  • 22.5 mm switch size
  • Quick release contact blocks
  • Potentiometer model
  • 2 and 3 position switches
  • Key operated models

more information & related documents

Series Description

The ABB MXSS series general purpose selector switches are for pilot duty control of electrical equipment such as fans, pumps, compressors or control circuits. The MT series is 10K ohm 280 degree turn potentiometer. These devices use the IEC style of buttons, plus offer economical pricing. When a project requires multiple panels configured in the same way let Kele's experienced panel technicians do it for you. Use Kele's Custom Panel Shop to assemble the panels according to specifications and drawings.

Kele Description

CONTACT BLOCK, 1 NO, WITHOUT HOLDER

Manufacturer

ABB
