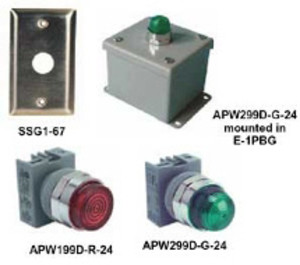

* product family image displayed

APD1126DNUW | IDEC | Panel Fabrication





List Price:


Today's Price:


Availability: Usually Ships in Less Than 11 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product family specifications

Materials Of Construction

Lens Acrylic

Base Nylon

Bezel Chrome-plated die-cast zinc

Terminals #6-40 (M3.5) screws

Applicable Wire Size

Minimum 1 x 22 AWG

Maximum 2 x 14 AWG or 1 x 12 AWG


0.86" (2.2 cm) hole

Panel Thickness

Panel thickness adjustment ring 0.04" to 0.24" (0.10 to 0.61 cm)


T3-1/4 miniature bayonet base

LED 6 VDC, 52 mA; 12 VAC/VDC, 26 mA; 24 VAC/VDC,13 mA; 120 VAC, 8 mA; 1,000,000 hrs average life

Incandescent 6.3V, 1W; 12V, 1W; 24V, 1W; 3000 hrs average life

Protection Rating

NEMA 1, 2, 3, 3R, 4, 4X, 12, 13


UL File #E65961; CSA File #LR48366, RoHs, CE


1 year

product family features

  • Rugged, oil-tight construction
  • Bezel-threaded lock ring for easy panel installation
  • Incandescent or LED lamps
  • Small size
  • Excellent visibility
  • Multiple voltage input ranges

more information & related documents

Family Description

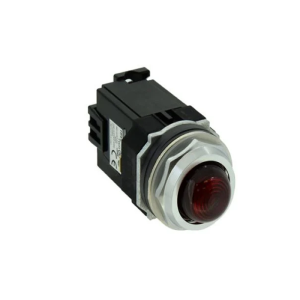

The APW Series IDEC pilot lights include replaceable incandescent and LED pilot lights. These lights can be mounted on control panels to provide immediate visual status of mechanical equipment such as fans, pumps, compressors, or control circuits on HVAC applications and building automation systems, BAS. If a project requires multiple panels configured in the same way, consider using Kele's Custom Panel Shop. Experienced panel technicians will assemble the panels according to specifications and drawings. Then, panels are shipped to a desired location. The information is saved so additional panels can be easily ordered on demand. Stop spending time on panel fabrication and let the experts do it.
