HomeProductsPanel FabricationLPSC, LPSM SERIES01500274Z
01500274Z
* product family image displayed

01500274Z | Littelfuse | Panel Fabrication

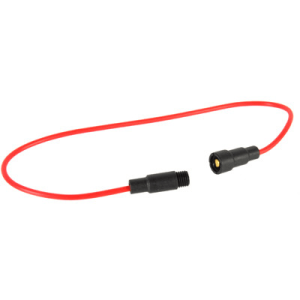

FUSE HOLDER; IN-LINE FOR 2AG OR 5X20MM FUSES

Manufacturer:Littelfuse

MPN:01500274Z

SKU:01500274Z

List Price:

7.48

Today's Price:

4.19



(login for better pricing)
USD
Availability: 949 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow
view catalog page

product family specifications

Voltage Rating

600 VAC/VDC max.

Current Rating

30 A max.

Wire Size

8-14 AWG

Materials Of Construction

Thermoplastic

Fuse Size

13/32″ diameter by 1 1/2″ long

Mounting

DIN rail

Approvals

UL File E14721, RoHs, CSA file LR7316, CE

Warranty

1 year

product family features

  • DIN rail mount
  • Hinged handle for quick, easy fuse change
  • Blown fuse indication
  • AC and DC rated

more information & related documents

Family Description

The Littelfuse LPSC & LPSM Series fuse holders can be used for various applications including control panels, lighting, heating and air conditioning, refrigeration equipment, transformer protection, and power monitoring. The LPSC & LPSM Series feature the convenience of DIN rail mounting and blown fuse indication.

Kele Description

FUSE HOLDER; IN-LINE FOR 2AG OR 5X20MM FUSES

Manufacturer

Littelfuse

Related Documents

PDF - LPSC, LPSM datasheet.pdf LPSC, LPSM datasheet
