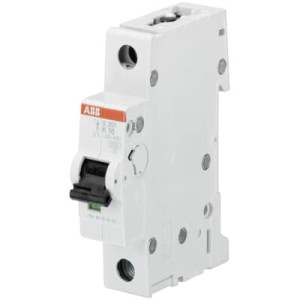

A compact white miniature circuit breaker branded ABB, featuring a black on/off switch lever and small circular access ports

S201-K5 | ABB | Panel Fabrication

CIRCUIT BREAKER, MINIATURE, 1P, K CURVE, 5A, 480Y/277 VAC, DIN MOUNT

Brand:ABB

MPN:S201-K5

SKU:S201-K5

List Price:

$71.46

Today's Price:

$37.16

catalog page

product series specifications

Rated Voltage: 240 VAC

Rated Current: 0.2 to 63 A

Rated Interruption:

Capacity: 10,000A

Enclosure Rating: NEMA 1, IP 20

Poles: Single, 2, 3

Operating Temperature: -13° to 131°F (-25° to 55°C)

Mounting: Vertical and Horizontal on 35mm DIN rail

Additional Specifications: Short Circuit Capacity 10kA

Frequency: 50/60 Hz

Protection Method: Electromechanical (thermal/magnetic)
Dimensions:
Single 0.71"W x 2.8"D x 3.6"H (1.8 x 7.1 x 9.2 cm)
2 Pole 1.38"W x 2.8"D x 3.6"H (3.5 x 7.1 x 9.2 cm)
3 Pole 2.47"W x 2.8"D x 3.6"H (6.3 x 7.1 x 9.2 cm)

Approvals: UL File #E212323

Weight:
Single 0.33 lb (0.15 Kg)
2 Pole 0.62 lb (0.28 Kg)
3 Pole 0.93 lb (0.42 Kg)

Warranty: 1 Year

product series features

Current limiting
Fast breaking time (2.5-3.5 msec)
DIN rail or front panel mounting
Finger safe terminals

more information & related documents

Series Description

The ABB S200U-K Series miniature circuit breakers are effective products for both commercial and industrial applications. The K- in.power in. characteristic-function assures protection and control for circuits like transformer and auxiliary circuits, and against overloads and short-circuits. Two terminal spaces on top or bottom can be used for cables with different cross-sections or combination of cables and busbars. The S200U-K Series also feature a quick fastening system for easy removal of the devices from the busbar and have a patented IP 20 finger safe terminals.

Kele Description

CIRCUIT BREAKER, MINIATURE, 1P, K CURVE, 5A, 480Y/277 VAC, DIN MOUNT

Manufacturer

ABB
