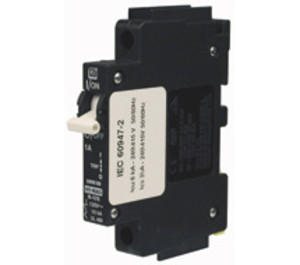

* product series image displayed

NR21 | IDEC | Panel Fabrication

CIRCUIT BREAKER PLUG-IN BASE, NRAS/NRAN, DIN RAIL MOUNT, 1P, 20A, 250 VAC

Brand:IDEC

MPN:NR21

SKU:NR21

List Price:

$9.90

Today's Price:

$5.15

catalog page

Lead time of 13 days. Chat with Kele experts now

product specifications

Number of Poles

Type

Plug-In Base

Interrupting Capacity

10,000 A

Rated Current

20 A

Supply Voltage (Nominal)

250 VAC

Mount

DIN rail

product series specifications

Rated Voltage: 120/240 VAC, 50/60 Hz

Rated Current: 1 A, 2A, 3A, 4A, 5A, 8A, 10A, 15A, 20A, 25A

Rated Interruption Capacity: 10,000 A

Protection Method: Hydraulic magnetic technology

Poles: Single pole

Time Delay: 150% rated current, 8-90 sec; 200% rated current 4-28 sec

Operating Temperature: -40° to 140°F (-40° to 60°)

Dimensions: 3.8"H x 0.51"W x 2.7"D (9.7 x 1.3 x 6.8 cm)

Weight: 0.22 lb (0.1 Kg)

Approvals: UL File #E192487, CSA, CE, VDE

Warranty: 1 year

product series features

Holds 100% rated current independent of ambient temperature
Resets immediately after tripping
Mounts to DIN rail

more information & related documents

Series Description

The QL Series circuit breakers provide excellent protection against overloads and short circuits for electrical circuits and small-sized electrical equipment. Reliable and economical, these circuit breakers are popular for HVAC applications and for building automation systems, BAS. If a project requires multiple panels configured in the same way, consider using the experienced panel technicians at Kele's Custom Panel Shop. They will assemble the panels according to specifications and drawings.

Kele Description

CIRCUIT BREAKER PLUG-IN BASE, NRAS/NRAN, DIN RAIL MOUNT, 1P, 20A, 250 VAC

Manufacturer

IDEC
