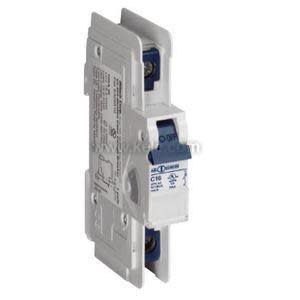

Thin white circuit breaker with blue lever on front for ON/OFF

1C3UL | Altech | Panel Fabrication

Circuit Breaker 3 Amp 1 Pole Din Mounted

Brand:Altech

MPN:1C3UL

SKU:1C3UL

List Price:

$116.00

Today's Price:

$60.32

product datasheet

catalog page

product specifications

Number of Poles

Type

Miniature

Rated Current

3 A

Trip Curve

C Curve

Supply Voltage (Nominal)

277 VAC

Mount

DIN rail

product series specifications

Rated Voltage: 120/240/277 VAC, 50/60 Hz

Rated Current: 1 A, 2 A, 3 A, 4 A ,5 A, 8 A, 10 A, 15 A, 20 A, 25 A

Rated Interruption Capacity: 10,000 A

Protection Method: Thermal magnetic technology

Poles: Single pole

Operating Temperature: -13° to 131°F (-25° to 55°C)

Dimensions: 4.1"W x 2.7" x 0.7"D (10.5 X 7.4 X 1.8 cm)

Weight: 0.31 lb (0.14 Kg)

Approvals: UL File #E329510, CE

Warranty: 1 year

product series features

Line/Load Reversible
Current Limiting
Mounts to DIN rail

more information & related documents

Series Description

The 1C Series Circuit Breakers provide excellent protection against overloads and short circuits for electrical circuits and small-sized electrical equipment. Reliable and economical, these circuit breakers are popular for HVAC applications and for building automation systems, BAS. If a project requires multiple panels configured in the same way, consider using the experienced panel technicians at Kele's Custom Panel Shop. They will assemble the panels according to specifications and drawings.

Kele Description

CIRCUIT BREAKER, MINIATURE, 1P, C CURVE, 3A, 277 VAC, DIN MOUNT

Manufacturer

Altech
