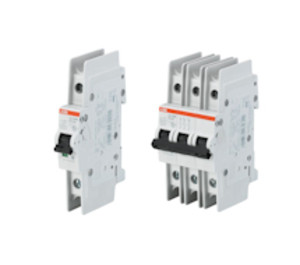

* product series image displayed

SU201MK2 | ABB | Panel Fabrication

CIRCUIT BREAKER, MINIATURE, 1P, K CURVE, 2A, 480Y/277 VAC, 48/96 VDC, DIN MOUNT

Brand:ABB

MPN:SU201MK2

SKU:SU201MK2

List Price:

$101.00

Today's Price:

$52.52

product specifications

Number of Poles

Type

Miniature

Rated Current

2 A

Trip Curve

K Curve

Supply Voltage (Nominal)

480 VAC,277 VAC

Mount

DIN rail

product series specifications

Rated Voltage:

(AC) 1P: 277 V AC up to 40 A for C, Z char., 277 V AC up to 35 A for K char., 240 V AC

(AC) 2P, 3P, 4P: 480 Y / 277 V AC up to 40 A for C, Z char., 480 Y / 277 V AC up to 35 A for K char., 240 V AC

(DC) 1P: 48 V DC; 2P: 96 V DC (2p in series)

Rated Current: 0.2 to 63 A

Rated Interruption Capacity: 15 kA

Enclosure Rating: IP20, IP40 in enclosure with cover

Poles: 1, 2, 3, 4

Operating Temperature: -13° to 131°F (-25° to 55°C)

Mounting: On DIN rail 35 mm acc. to EN 60715 by fast clip

Additional Specifications: Short Circuit Capacity 10kA

Frequency: 50/60 Hz

Protection Method: Electromechanical (thermal/magnetic)

Dimensions:

Pole dimensions (H x D x W) 111 x 69 x 17.5 mm

Approvals: UL 489, CSA 22.2 No. 5, VDE, CCC

Weight:

Single 0.33 lb (0.15 Kg)

2 Pole 0.62 lb (0.28 Kg)

3 Pole 0.93 lb (0.42 Kg)

4 Pole 1.32 lb (0.60 Kg)

Warranty: 1 Year

product series features

High performance MCB with 10 kA interrupting capacity acc. to UL 489 / CSA 22.2 No. 5 and 15 kA breaking capacity acc. to IEC/EN 60947-2
Certified up to In = 40 A at 480 Y/277 V AC acc. to UL 489 / CSA 22.2 No. 5
Certified for AC and DC use acc. to UL and CSA
40 degrees C reference temperature acc. to UL and CSA
Current limiting acc. to UL 489
Clear contact position indication in red/green (in.real CPI in.)

more information & related documents

Series Description

The SU200M Series miniature circuit breaker is ABB's solution for UL 489 branch circuit protection. It's computable up to 480 Y/277 V AC and 96 V DC. This circuit breaker is an all-around device. In accordance to the UL, CSA and IEC standards, these miniature circuit breakers are dual rated for AC and DC applications in North American and global markets. Moreover, SU200M is fully compatible with System pro M compact UL® 489 accessories. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.

Kele Description

CIRCUIT BREAKER, MINIATURE, 1P, K CURVE, 2A, 480Y/277 VAC, 48/96 VDC, DIN MOUNT

Manufacturer

ABB
