* product series image displayed

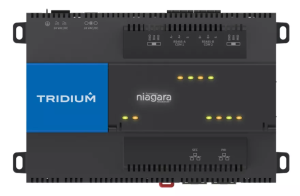

NC-9010 | Tridium | Network & Wireless

JACE 9000 10 Device Core Software Only & 500 Points. Includes standard open drivers. Supports up to 10 devices or 500 points. Requires Niagara 4.13 or higher.

Brand:Tridium

MPN:NC-9010

SKU:NC-9010

Call 877.826.9045 or for pricing

product series specifications

HARDWARE SPECIFICATIONS

NXP iMX8M+ Quad Core CPU

2GB LPDDR4 RAM

Removable 8GB micro-SD card

Wi-Fi (Client or WAP)

Wi-Fi 5 (802.11ac)

1x1 802.11 a/b/g/n/ac

Configurable radio (Off, WAP, or Client)

WPAPSK/WPA2PSK supported O

Only available for wireless model

USB type C connector

Debug port

(2) isolated RS-485 with selectable bias and termination

( 2) 10/100/1000MB Ethernet ports Secure boot

Supply requirements

24VAC rated at 24VA minimum, or 24VDC rated at 1A (24W) minimum

Runs Niagara 4: 4.13 and later

Real-time clock

Batteryless

product series features

Data analysis at the onsite JACE controller level
Real-time on-premise analytic control

more information & related documents

Series Description

The JACE® 9000 is a compact, embedded IoT (Internet of Things) controller and server platform for connecting multiple and diverse devices and sub-systems. With internet connectivity and webserving capability, the JACE 9000 controller provides integrated control, supervision, data logging, alarming, scheduling and network management. It streams data and rich graphical displays to a standard web browser via an Ethernet or wireless LAN, or remotely over the internet.

Kele Description

JACE 9000 CORE - 10 DEVICE

Manufacturer

Tridium
