SDITR-NC-9025 | Distech Controls | Network & Wireless

EC-BOS-9 core software. Includes standard open drivers. Supports up to 25 devices or 1250 points. Requires EC-Net 4.13.2 or higher. Software Maintenance Agreement (SMA) must be purchased in conjunction with core software.

Brand:Distech Controls

MPN:SDITR-NC-9025

SKU:SDITR-NC-9025

Call 877.826.9045 or for pricing

product series features

Scalable licensing model and modular hardware make the EC-BOS-9 suitable for installation in small buildings, as well as across large multi-unit campuses when combined with an EC-Net Supervisor
Integrates many communication protocols and automation systems including HVAC, lighting, energy, physical access, video, and industrial/processing
Two on-board isolated RS-485 ports for connecting to various common networks, e.g. BACnet MS/TP, Modbus RTU
Option modules for additional physical network connections, e.g. LONWORKS© FTT-10A, RS-232, RS-485, and Wiegand access control readers

more information & related documents

Series Description

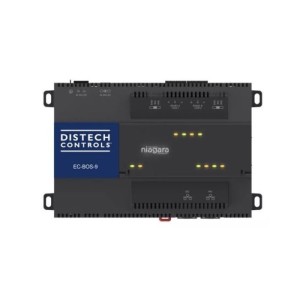

The EC-BOS-9 is a compact, embedded controller and server platform for connecting multiple and diverse devices and sub-systems. With Internet connectivity and Webserving capability, the EC‑BOS‑9 provides integrated control, supervision, data logging, alarming, scheduling and network management. It streams data and graphical displays to a standard Web browser via an Ethernet or wireless LAN, or remotely over the Internet. The EC-BOS-9 operates with the EC-Net web-based management platform powered by the Niagara Framework.

Kele Description

EC-BOS-9 CORE - 25DEVICES/1250 POINTS

Manufacturer

Distech Controls
