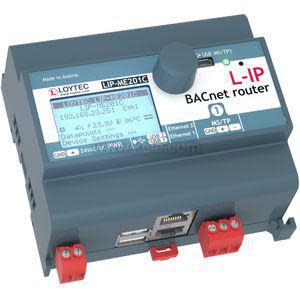

LIP-ME201C | Loytec | Network & Wireless
BACnet MS/TP To BACnet/IP Router
Brand:Loytec
MPN:LIP-ME201C
SKU:LIP-ME201C
List Price:
$1,587.31
Today's Price:
$825.40
product specifications
Power Supply
24 VAC/VDC
Type
Display
Communication Input
BACNET MS/TP
Communication Out
BACnet IP
DIN Rail Mount
Yes
product series specifications
- Supply Voltage:
- 12 to 35 VDC @ 125 mA, 12 to 24 VAC ± 10% @ 3 VA
- Communication:
- LIP-1ECTB:
- Type CEA-709, IP (10/100Base-T + TP/XF-1250)
- LIP-3xxxx:
- Type CEA-709, IP (10/100Base-T + TP/FT-10)
- LIP-ME201:
- Type BACnet, IP (10/100Base-T + BACnet MS/TP)
- Channels:
- LIP-1ECTB:
- 1x TP/XF-1250, 1x Ethernet (100Base-T) Lonmark IP-852, HTTP, FTP
- LIP-3333ECTB:
- 4x TP/FT-10, 1x Ethernet (100Base-T) Lonmark IP-852, HTTP, FTP
- LIP-33ECRB/LIP-33ECTB:
- 2x TP/FT-10, 1x Ethernet (100Base-T) Lonmark IP-852, HTTP, FTP
- LIP-3ECTB:
- 1x TP/FT-10, 1x Ethernet (100Base-T) Lonmark IP-852, HTTP, FTP
- LIP-ME201:
- 1x BACnet MS/TP, 1x Ethernet (100Base-T) BACnet/IP, HTTP,FTP
- Operating Temperature:
- 0° to 122‚Ñâ (0° to 50‚ÑÉ)
- Operating Humidity:
- 10-90% RH @ 122‚Ñâ (50‚ÑÉ) non-condensing
- Mounting:
- DIN rail
- Dimensions:
- All other models:
- 4.21‚Ä=W x 3.94‚Ä=H x 2.36‚Ä=D (10.7 x 10.0 x 6.0 cm)
- LIP-3333ECTB:
- 6.26"W x 3.94"H x 2.36"D (15.9 x 10.0 x 6.0 cm)
- Weight:
- LIP-3333ECTB:
- 0.68 lbs (0.31 kg)
- All other models:
- 0.49 lbs (0.22 kg)
- Approvals:
- CE, FCC
- Warranty:
- 2 years
product series features
- BACnet and LON models
- Configuration via built-in Web server or serial port
- Status and activity LED
- 100baseT connection
- DIN-rail mountable
more information & related documents
Series Description
The Loytec L-IP Series of routers easily connect LON or BACnet networks to IP networks. Configuration is simple, and is accomplished through a built-in web server or serial port. The LON model supports both Smart Switch and Configured Router modes, and models are available for both FT-10 and XF-1250 physical networks. The BACnet model supports MS/TP on one side and BACnet/IP on the other.
Kele Description
BACNET MS/TP TO BACNET/IP ROUTER
Manufacturer
Loytec
