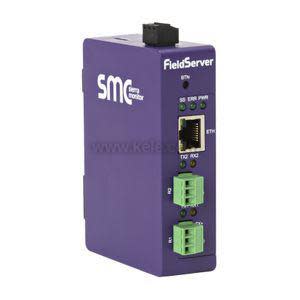

FS-ROUTER-BAC2 | FieldServer | Network & Wireless
BACnet Router, dual serial port
Brand:FieldServer
MPN:FS-ROUTER-BAC2
SKU:FS-ROUTER-BAC2
List Price:
$1,000.00
Today's Price:
$520.00
product specifications
Power Supply
24 VAC/VDC
Type
DUAL PORT
Communication Input
BACnet IP
Communication Out
BACnet MS/TP
DIN Rail Mount
Yes
product series specifications
- Supply Voltage:
- 12-24 VAC 50/60 Hz or 9-30 VDC
- Supply Current:
- 240 mA @ 12V
- Communication:
- :
- Serial RS-485 x 2 Galvanic isolation
- :
- Baud: 9600, 19200, 38400, 57600, 76800, 115200
- :
- Ehternet 10/100BaseT
- :
- MDIX
- :
- DHCP
- Connections:
- :
- RS485 6 terminals (2-ports)
- :
- Power 3 terminals
- :
- Ethernet RJ45 10/100 port
- Setup:
- :
- Configuration Via internal HTML page
- :
- Find Device Discovers connected devices
- :
- BBMD BACnet Broadcast Management Device
- :
- FDR Foreign Device Registration details to other subnets
- Operating Temperature:
- -40° to 167‚Ñâ (-40° to 75‚ÑÉ)
- Operating Humidity:
- 5-90% RH non-condensing
- Mounting:
- DIN rail, wall, table
- Dimensions:
- 4.5‚Ä= x 2.9‚Ä= x 1.6‚Ä= (11.5 x 7.4 x 4.1 cm)
- Weight:
- 0.4 lbs (0.2 Kg)
- Approvals:
- CE, FCC, CSA, RoHS, BTL
- Warranty:
- 2 years
product series features
- BTL Certification, Rev. 12: the first standalone device in the industry to carry the BTL mark to ensure the highest standard of BACnet integration.
- Multiple BACnet routing connections: BACnet/IP, BACnet MS/TP, BACnet Ethernet
- DeviceFind™: an unique discovery feature, allows the integrator to discover all the BACnet devices connected to the router with one push of a button, minimizing time required for successful commissioning
- NAT support with secondary BACnet/IP connection for routing between public and private IP networks
- Foreign Device Registration (FDR)
- BACnet Broadcast Management Device (BBMD) for a connection between different subnets
- Web based configuration
- MDIX to use any Ethernet cable for commissioning and installation
- DHCP to automatically obtain IP setting from the network
- FieldServer Toolbox to find and diagnose routers on your network
more information & related documents
Series Description
The FieldServer FS-Router-BAC BACnet router has two RS-485 ports enabling up to 64 BACnet MS/TP devices connected to it without the use of additional line drivers. The router allows response to be cut in half due to the device's two RS-485 ports. The router has an easy one page configuration, ensuring that integration is completed with ease. All BACnet connected devices can be viewed through the unique device discovery function. The list of discovered devices can be exported via Excel. This router has been certified by BTL to ensure the highest standard for BACnet integration.
Kele Description
DUAL PORT BACNET MS/TP, IP, AND ETHERNET ROUTER
Manufacturer
FieldServer
BACnet Router Datasheet
