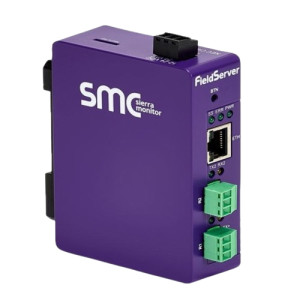

FS-QS-1211-0131 | FieldServer | Network & Wireless
GATEWAY INTERFACE/500 DATA POINTS LONWORKS-BACNET IP
Brand:FieldServer
MPN:FS-QS-1211-0131
SKU:FS-QS-1211-0131
product specifications
Power Supply
24 VAC,24 VDC
Communication Input
LON
Communication Out
BACnet IP
Type
Protocol Converter
DIN Rail Mount
Yes
product series specifications
Communication:
Serial (Galvanic Isolation) Ethernet Environment 1 x RS-485/RS-232 & 1 x RS-485
Baud 9600, 19200, 34800, 57600, 76800 10/100BaseT MDIX DHCP
Operating Temperature -20 to 70°C (-4 to 158°F)
Relative Humidity10-95% RH non-condensing
Other:
Web configuration
On-board diagnostics
DIN rail mount included
Construction:
Dimensions (HxWxD) 4" x 1.1" x 2.7" (10.16 x 2.8 x 6.8cm)
Weight 0.4 lbs. (0.2 Kg)
Power Requirements:
Input 24VAC 0.125A -12-24VDC 0.25A @12 VDC
Max Power 3W
Approvals: CE and FCC Class B & C Part 15, BTL Marked, UL 60950-1 and CAN/CSA C22.2 IC Canada, RoHS and WEEE compliant
product series features
- Interface 250 - 5,000 data points
- DIN rail mount standard
- BACnet COV support for fast data communication while reducing the traffic over a BACnet network
- SMC Cloud registration connects your devices to the cloud, allowing secure remote access for diagnostics, monitoring and firmware updates
- On-board diagnostics allow easy troubleshooting for both serial and Ethernet communications
more information & related documents
Series Description
The QuickServer is a high-performance, fully configurable, cost-effective building and industrial automation gateway for integrators to easily interface devices to networks in commercial buildings and industrial plants. The QuickServer FS-QS-2X10-F Series is available at four different point capacities. Each QuickServer is preloaded with 140 different drivers, such as Modbus, BACnet, SNMP, EtherNet/IP, and many more.The QuickServer FS-QS-2010-F Series can support up to 250 points. The FS-QS-2210-F can support up to 500 points. The FS-QS-2310-F can support up to 3,000 points. The FS-QS-2410-F can support up to 5,000 points.
Kele Description
GATEWAY INTERFACE/500 DATA POINTS LONWORKS-BACNET IP
Manufacturer
FieldServer
