EE244-AA2D | E+E Elektronik | Network & Wireless

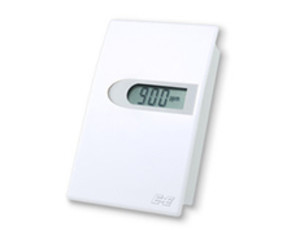

The E+E EE240 Series feature advanced sensor technology and ease of installation. An extendable assortment of sensing probes allows for usage in many applications. The EE240 Series is capable of point to point or complex networking.Wireless Transmitter EE244Every transmitter can be equipped with up to three sensing probes. An optional display is available to provide local indication. As a standard, batteries provide for the power supply. For more power-demanding applications the device can be powered through an external adapter.Wireless Transmitter EE245 The elegant housing combines the measurement of temperature, humidityand CO2. An optional display is available to provide local indication.As a standard, batteries provide for the power supply. For more powerdemanding applications the device can be powered through anexternal adapter.Base Station EE241 and EE242The point-to-point connection can be accomplished with the EE241. The configuration at the factory of up to four transmitted measurement values is done in accordance with your specifications, meaning that the values are available as analog outputs (0 - 5 / 10 V or 4 - 20 mA) immediately after installation.For more complex networks (up to 500 transmitters or up to 2000 measurement values) the user-configurable EE242 is available. Independent of the topology of the network, the integrated Webserver and the Ethernet interface warrants highest flexibility in the configuration of the network with a computer.A simple integration of the measurement system in the customer's network and the easy remote access and diagnostics of the measurement data are additional helpful features. The output values can be transferred as an analog signal, as well as in digital form via Ethernet. For network integration, Modbus is supported. Router Series EE244-R, EE245-RThe radio range depends greatly on local circumstances. With the router series, obstacles can be bypassed or the transmission distance expanded.

E+E Elektronik
