WING-MGR | RLE Technologies | Network & Wireless

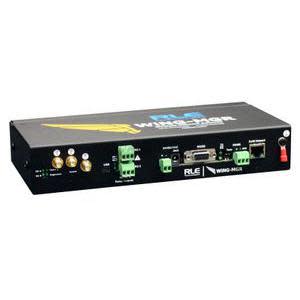

WiNG Manager - 900MHz Receiver; Includes Rack Mount Bracket, PSWA-DC-24 Power Supply and Type A Blade
Brand:RLE Technologies
MPN:WING-MGR
SKU:WING-MGR
List Price:
$3,232.00
Today's Price:
$1,680.64
Availability: Lead time > 15 days. See alternatives below or chat with Sales.
product specifications
Output
BACnet/Modbus
Power Supply
24 VAC
Type
Receiver
Wireless Communication
900 MHz
product series specifications
- Power :
- 3.6V AA lithium battery
- Battery Life :
- Up to 5 years when system spans full operating temperature range.
- :
- Up to 8 years at room temperatures up to 122‚Ñâ (50‚ÑÉ)
- :
- Up to 12 years at room temperature
- Shelf Life :
- 10 years in quiescent mode with battery installed
- Transmission:
- Interval:
- 10-20 seconds (random)
- Frequency:
- Available in 868MHz and 900MHz configurations
- Range:
- Up to 600ft line of sight
- Leak Detection Input:
- Accepts up to 100ft (30.5m) of sensing cable, 50ft (15m) of sensing cable and one SD-Z spot detector, or 1 SD-Z1 spot detector
- Compatibility:
- Compatible with all RLE sensing cables and the SD-Z and SD-Z1 spot detectors.
- Sensor Response Time:
- < 20 seconds
- Cable Break Detection:
- Yes
- Cable Sensitivity:
- Configurable
- Operating Environment:
- Temperature:
- -13‚Ñâ to 185‚Ñâ (-25‚ÑÉ - 85‚ÑÉ)
- Humidity:
- 0% to 90% RH (Non-condensing)
- Altitude:
- -200 ft to 15,000 ft (-70m to 4572m) max
- Mounting :
- Free standing, zip ties, screw and keyhole - spaced 2.5‚Ä= (6.4cm), junction box - 2 screws spaced 3.28‚Ä= (8.3cm)
- Dimensions and Weight :
- 4.4‚Ä=L x 2.5‚Ä=W x 1.5‚Ä=H (11.2cmL x 6.4cmW x 3.8cmH), 0.2lb (0.10kg)
- Certifications and Standards:
- CE UL61010, CSA 22.2 #61010, IEC 61326-1, FCC 47CFR 15B, IC ICES-003, EN 61000-3-2, EN61000-3-3,
- :
- ETSI EN 301 489-1, ETSI EN 301 489-3; FCC ID: X7J-A11072401: IC: 8975A-A11072401
product series features
- Transmission range between manager and sensors:
- Up to 100 ft through multiple walls
- Up to 270 ft through one wall
- Up to 600 ftdirect line of sight
- Add up to 1,000 ft direct line of sight with a WiNGRXT range extender
- Support 250 sensors on a single manager, up to 400 sensors with range extenders
more information & related documents
Series Description
The RLE Technologies WING Wireless Leak Detector is designed for use with the WING-MGR and BMS-WING systems. The WING-LD pairs the WING wireless transmitter with RLE's patented leak detection sensing cable to detect and report leaks in any facility.
Kele Description
WING WIRELESS MANAGER - 900 MHZ RECEIVER
Manufacturer
RLE Technologies
