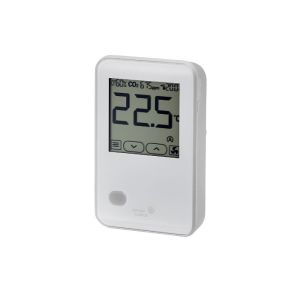

* product series image displayed

NSB8BTN140-0 | Johnson Controls | Thermostats & Controllers

NS SERIES NETWORK SENSOR W/DISPLAY

Brand:Johnson Controls

MPN:NSB8BTN140-0

SKU:NSB8BTN140-0

This part requires a license. Log in to verify your license or submit a form to request a license.

product specifications

Type

Sensor

product series specifications

Supply Voltage:

9.8 VDC to 16.5 VDC

15 VDC nominal from SA bus

Temperature measurement range:

32°F (0°C) to 104°F (40°C)

Temperature sensor type:

Digital temperature sensor

Humidity sensor type:

Thin film capacitive sensor

product series features

BACnet MS/TP protocol communication: provides compatibility with Metasys system field controllers, Facility Explorer programmable controllers as well as Verasys and Johnson Controls Smart Equipment in a proven communication network.
Single and multifunctional sensors: choose temperature, RH, CO2, and occupancy sensing depending on HVAC needs.
Large backlit LCD fixed segment display or LCD full color graphical display on some models: provides real-time status of the environment with backlighting activated during user interaction.
Simple temperature setpoint adjustment or Warmer/Cooler mode available on display models: configure simple setpoint adjustment or Warmer/Cooler mode.
Onboard occupancy sensor available on PIR models: maximizes up to 30% energy savings in high-energy usage environments, and facilitates trending of floor space usage.
Temporary occupancy included on all display and Warmer/Cooler models: provides a timed override command, which initiates a temporary occupancy state.
All display models meet California Energy Code (Title 24): displays the required State of California Title 24 economizer fault conditions.
All display models include a screen lockout: prevents sensor tampering.

more information & related documents

Series Description

The NS8000 Series Network Sensors function directly with Metasys system Field Equipment Controllers (FECs), Metasys Network and Control Engines (NCEs), Advanced Application Field Equipment Controller (FACs), Metasys VAV Box Equipment Controllers (CVM) and General Purpose Application Controllers (CGM), VAV Modular Assembly (VMA16) Controllers, and Facility Explorer FX-PC Series Programmable Controllers (FX-PCGs, FX-PCVs, and FX-PCXs). The sensors are also compatible with Verasys and Johnson Controls® Smart Equipment.

Kele Description

NS SERIES NETWORK SENSOR W/DISPLAY

Manufacturer

Johnson Controls
