840-2200 | LumenRadio | Network & Wireless

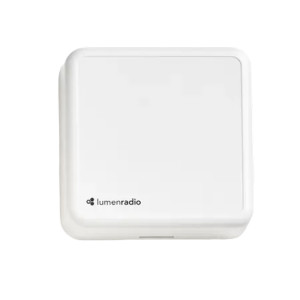

840-2200 BACNET W-XBUS EVALUATION BUNDLE
Brand:LumenRadio
MPN:840-2200
SKU:840-2200
List Price:
$1,303.00
Today's Price:
$677.56
Log in for customized pricingproduct specifications
Communication Protocol
BACnet MS/TP
Type
Module
product series specifications
Power Supply: 24 VAC ±15% 50-60 Hz, 24 VDC ±15%
Max Power Consumption: 2.5 W
Power: 10 W, 24 V output max
Frequency Band: 2.45 GHz, ISM band (2400-2483 MHz)
Baud Rate: 9600, 19200, 38400, 76800 bps
Output (ERP): Max 20 dBm
Ambient Temperature: Operating: -4 to 131 ºF
Storage: -22 to 176 ºF
RH: 10 – 95% non-condensing
product series features
- Out-of-the-box installation – power up and connect to your BACnet MS/TP device and you are up-and-running
- Instant commissioning – 3 simple steps, commission the W-BACnet network in minutes
- Mesh network – cover an entire building, utilizing the mesh network as your infrastructure.
- Range – 500 meters (line-of-sight) per hop in the mesh network
- Self-optimizing network – the mesh network will always find the best way to send messages through the network between devices
- Modular configuration – no need for the same baud rate across all devices, W-BACnet supports individual settings
more information & related documents
Series Description
Enable energy savings and meet sustainability targets with wireless control. Wireless technology adds value through easier and more flexible installations, lower maintenance costs and an inbuilt flexibility for future upgrades. W-BACnet replaces the BACnet MS/TP cable with a reliable wireless mesh - it eliminates time-consuming installation planning, cabling, daisy-chaining and trouble shooting. Avoiding cabling has never been easier. Retrofit with W-BACnet and convert a wired installation to a wireless network.
Kele Description
840-2200 BACNET W-XBUS EVALUATION BUNDLE
Manufacturer
LumenRadio
Related Documents
W-BACnet DATA SHEET
