Print
Email
BB2-6010-10X-232 | Control Solutions | Network & Wireless

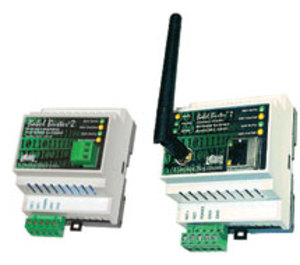

BABEL BUSTER BB2-6010 MODBUS TO SNMP, MODBUS RTU TO TCP GATEWAY, EXTENDED MEMORY, RS-232 RTU PORT
Manufacturer:Control Solutions
MPN:BB2-6010-10X-232
SKU:BB2-6010-10X-232
List Price:
$1,770.36
Today's Price:
$885.18
product family specifications
Supply Voltage
10-30 VDC @ 100 mA or 12-24 VAC @ 3.6 VA, 50/60 Hz
Communication Ports
BB2-3010
2 RS-485 ports
BB2-6010/7010/7030
1 RS-485 and 1 RJ-45 port
Baud Rate
MS/TP baud rates: 9600, 19200, 38400, 76800;
Modbus RTU baud rates: 4800, 9600, 19200, 38400
Signal LEDS
BB2-3010/7030
4; device data/status, BUS data/status
BB2-6010/7010
2; device data/status
Operating Temperature
-40° to 185℉ (-40° to 85℃)
Operating Humidity
5-95% RH non-condensing
Mounting
DIN rail
Dimensions
3.94″H x 2.76″W x 2.36″D (100 x 70 x 60 mm)
Weight
2 lbs (0.91 kg)
Approvals
BB2-3010
FCC, CE, UL File #E312255, BTL Listed
BB2-6010/7010/7030
FCC Class A, CE
Warranty
1 year
product family features
- Easy to use and cost effective
- Variety of models support all major building automation protocols
- BACnet to LonWorks or LonWorks to BACnet translation
- BACnet to Modbus or Modbus to BACnet translation
- BACnet to SNMP or SNMP to BACnet
- LowWorks to Modbus or Modbus to LonWorks translation
- Modbus to BACnet IP to WiFi Sensors (Point6, AirTest, Veris)
- Bacnet to ZigBee and Modbus to ZigBee
more information & related documents
Family Description
Control Solutions BB2 Babel Buster Series gateways are devices that re-map network devices having different protocols. Variety of model options provide support for building automation with BACnet IP or MS/TP, LonWorks, Modbus RTU, TCP and selected wireless protocols such as ZigBee and WiFi. The device can create master/slave operation or support multiple data input sorts from other connected devices.
Kele Description
BABEL BUSTER BB2-6010 MODBUS TO SNMP, MODBUS RTU TO TCP GATEWAY, EXTENDED MEMORY, RS-232 RTU PORT
Manufacturer
Control Solutions
