BB2-3020-EXT-USB

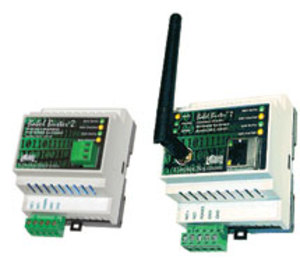

* product series image displayed

BB2-3020-EXT-USB | Control Solutions | Network & Wireless

BABEL BUSTER BB2-3020 LONWORKS TO BACNET MS/TP GATEWAY, EXT. TEMP, W/USB CABLE

Brand:Control Solutions

MPN:BB2-3020-EXT-USB

SKU:BB2-3020-EXT-USB

List Price:

$1,755.00

Today's Price:

$912.60



Availability: Usually Ships in Less Than 4 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Power Supply

24 VAC/VDC

Type

RS-485 to RS-485

Communication Input

LON

Communication Out

BACnet MS/TP

product series specifications

    Supply Voltage:
  • 10-30 VDC @ 100 mA or 12-24 VAC @ 3.6 VA, 50/60 Hz
    Communication Ports:
    BB2-3010:
  • 2 RS-485 ports
    BB2-6010/7010/7030:
  • 1 RS-485 and 1 RJ-45 port
    Baud Rate:
  • MS/TP baud rates: 9600, 19200, 38400, 76800;
    Modbus RTU baud rates: 4800, 9600, 19200, 38400:
    Signal LEDS:
    BB2-3010/7030:
  • 4; device data/status, BUS data/status
    BB2-6010/7010:
  • 2; device data/status
    Operating Temperature:
  • -40° to 185‚Ñâ (-40° to 85‚ÑÉ)
    Operating Humidity:
  • 5-95% RH non-condensing
    Mounting:
  • DIN rail
    Dimensions:
  • 3.94‚Ä=H x 2.76‚Ä=W x 2.36‚Ä=D (100 x 70 x 60 mm)
    Weight:
  • 2 lbs (0.91 kg)
    Approvals:
    BB2-3010:
  • FCC, CE, UL File #E312255, BTL Listed
    BB2-6010/7010/7030:
  • FCC Class A, CE
    Warranty:
  • 1 year

product series features

  • Easy to use and cost effective
  • Variety of models support all major building automation protocols
  • BACnet to LonWorks or LonWorks to BACnet translation
  • BACnet to Modbus or Modbus to BACnet translation
  • BACnet to SNMP or SNMP to BACnet
  • LowWorks to Modbus or Modbus to LonWorks translation
  • Modbus to BACnet IP to WiFi Sensors (Point6, AirTest, Veris)
  • Bacnet to ZigBee and Modbus to ZigBee

more information & related documents

Series Description

Control Solutions BB2 Babel Buster Series gateways are devices that re-map network devices having different protocols. Variety of model options provide support for building automation with BACnet IP or MS/TP, LonWorks, Modbus RTU, TCP and selected wireless protocols such as ZigBee and WiFi. The device can create master/slave operation or support multiple data input sorts from other connected devices.

Kele Description

BABEL BUSTER BB2-3020 LONWORKS TO BACNET MS/TP GATEWAY, EXT. TEMP, W/USB CABLE

Manufacturer

Control Solutions
