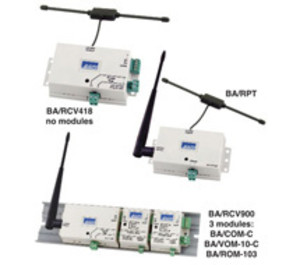

* product family image displayed

BA/RCV418-ENET | BAPI | Network & Wireless

WIRELESS RECEIVER 418MHZ W/ETHERNET OUTPUT

Manufacturer:BAPI

MPN:BA/RCV418-ENET

SKU:BA/RCV418-ENET

List Price:

1,886.28

Today's Price:

1,056.31



(login for better pricing)
USD
Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Device Operation

Supply Voltage

RCV418 9 to 30 VDC @80mA or 17 to 31 VAC @0.5VA

RCV900 9-15 VDC @80 mA

Output

RS485 bus to a maximum of 127 "″Output Modules″"

Voltage BA/VOM-xx

Current BA/COM-xx

Setpoiint BA/SOM-xx

Thermistor BA/ROM-xxx

Relay

(DO) BA/RYOM (momentary, BA/RYOL (latching)

Indication

LED blinks on each reception

Mounting

DIN rail or 2 screws to back plane

Output modules plug into the right side of receiver

Wiring

1, RP-SMA antenna connection and 2 Power terminals, 22-16 AWG

Operating Temperature

32 to 140℉ (0 to 60℃)

Operating Humidity

5% to 95% RH non-condensing

Construction

ABS Plastic, UL94, V-0

Enclosure Rating

Indoor, NEMA 1

Dimensions

2.75″H x 4.8″W x 1.2″D, (7.0 x 12.0 x 3.0 cm)

Weight

0.5 lb (0.2 kg)

Warranty

2 year

Radio/Radio Receiver

Protocol

Proprietary (Point Six)

Frequency

418 MHz or 902 MHz (order specific)

RCV418 418 MHz, Direct reception NO repeater

RCV900 902 MHz, Requires a repeater to be in the system

Modulation

418 MHz -Frequency Modulation

902 MHz -FHSS Modulation

Receiver Sensitivity

-110 dBm

Open Air Range

RCV418 = 100ft from all transmitters, (Open air)

RCV900 = 1000ft from closest repeater, (Open air)

Low Battery Indication

None

Transmission time

20ms

Antenna

External 418 MHz or external 900 MHz

Channels

RCV418 = 1, RCV900 = 7

Device Addresses

100 transmissions per minute

Programming

Push button on ″Transmitter/Output Module″ simultaneously

Repeater Capable

RCV900 only

Approvals

RoHS

product family features

  • Eliminates point wiring
  • FCC license pre-approved
  • Receivers accommodate 127 output modules each
  • Receiver sensitivity -106 dBm minimum
  • Built In error detection
  • Repeater transmit power 100 mW
  • 1000-foot repeater range (open air)
  • Snap-track or DIN rail mounting

more information & related documents

Family Description

The BAPI BA/RCV Wireless Receivers detect the radio signals from sensor transmitters or BA/RPT repeaters and send the value through a hard-wired RS485 bus to dedicated output modules. Each receiver can accommodate 127 output modules, which come in a variety of output types including thermistor simulation (10K Ω type 2 or 3), 4-20 mA, 0-5 VDC, 0-10 VDC, and solid-state switch. The BA/RCV418 receives signals directly from sensor transmitters at 418 MHz. The BA/RCV900 receives signals only from repeaters at 900 MHz. The BAPI BA/RPT Wireless Repeater detects all 418 MHz and repeated 900MHz transmitter signals, and re-transmits the signal at 900 MHz to extend useable wireless distance to 1000 feet open air. These signals are received with a BA/RCV900 for RS485 communication distribution to the output modules.

Kele Description

WIRELESS RECEIVER 418MHZ W/ETHERNET OUTPUT

Manufacturer

BAPI
