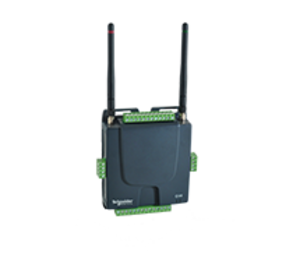

* product series image displayed

MPM-CL3-0000-45 | Schneider Electric Buildings | Network & Wireless

Name: MPM-CL3-0000-45
Brand: Schneider Electric Buildings
SKU: MPM-CL3-0000-45
Availability: InStock

CLOUD CONTROLLER ACCOUNT# A10110467

Brand:Schneider Electric Buildings

MPN:MPM-CL3-0000-45

SKU:MPM-CL3-0000-45

catalog page

This item has been discontinued and is no longer available for purchase.

Need assistance? Call 877.826.9045 or for replacement options.

product specifications

Power Supply

24 VAC

Type

VAV MGR

Output

Analog,Digital

Wireless Communication

Zigbee,Enocean

product series specifications

Supply Voltage: 24 VAC/VDC, 50/60Hz

Frequency: EnOcean: 315MHz, 868MHz or 902MHz; ZigBee: 2.4GHz, 16RF Channels

Receiver Sensitivity: EnOcean -95dBm; ZigBee -101dBm/-105dBm (amplified)

Range: Line of sight: EnOcean 100ft/30m; ZigBee peripherals 100ft/30m, ZigBee MPM 300ft/100m

Communication: ZigBee Pro, EnOcean, BACnet, CANbus (125-500Kbps), Ethernet(10/100Mbps), Modbus

Supported Protocols: BACnet, EWS, oBIX, FTP, EnOcean, ZigBee, CANbus, Modbus

Memory: 64MB Flash

Processor: ARM9 32-bit, 400MHz

Data Storage: 2GB flash for local storage

Antenna: External whip, RP SMA Connector

Clock Backup: Real-time clock, Battery backed (10,000 hrs)

Input: 6 universal, configurable, 14-bit resolution (analog: 4-20mA, 0-10V; digital: dry contact, thermistor: 1-100K)

Maximum Number of Wireless Modules: EnOcean (wireless): 128 points; ZigBee (wireless): 30 peripherals

Outputs: 2 relay (24V, 1.1A each), 4 analog (0-12V, 50mA max, 12-bit resolution)

Operating Temperature: 32° to 140°F (0° to 60°C)

Operating Humidity: 0-90% RH non-condensing

Enclosure Rating: NEMA 1, Rigid ABS, UL94V0-5VB

Mounting: Din-rail, wall or ceiling mount

Dimensions: 4.96"H x 5.20"W x 1.34"D (126 x 132 x 34 mm)

Weight: 0.5 lb (0.23 Kg)

Approvals: CSA, FCC, ICES-003, CE, Japanese Radio Law, RoHS

Warranty: 1.5 years

product series features

Control of wired end-devices (6 inputs, 6 outputs)
Wireless control of EnOcean end-devices (optional, 128 points per MPM)
Wireless control of ZigBee end-devices (optional, 30 peripherals per MPM)
Modbus (optional).
Programmable via StruxureWare™ Building Expert
Points visible through BACnet, EcoStruxure Web Services (EWS) and oBIX
Real-time response to scripting/graphical programming

more information & related documents

Series Description

The Schneider Electric MPM-UN Series multi-purpose manager and wireless gateway enable the control, monitoring and management of entire sites via StruxureWare™ Building Expert. They can also be used for wired and wireless zone control in larger buildings. They support a variety of HVAC, lighting and metering applications. All models have an embedded web server hosting Building Expert, a web-based intelligent building management system that allows complete configuration and management of small sites.

Kele Description

CLOUD CONTROLLER
