69402 | Peco | Network & Wireless

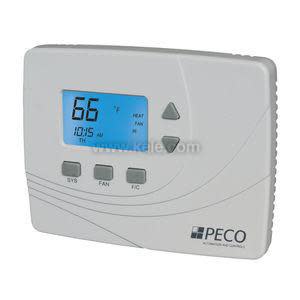

Wireless Non-Porgrammable Thermostat for Fan Coil and PTAC/ PTHP. Requires a RW205-001 Receiver.
Brand:Peco
MPN:69402
SKU:TW205-001
product series specifications
- Supply Voltage:
- :
- TW205 24 VAC or 2 AA batteries (included)
- :
- RW205 24 VAC or 100-277 VAC 50/60 Hz
- Frequency:
- 902 to 928 MHz
- Temperature Range:
- 50° to 90°F (10° to 32°C)
- Range:
- 100 ft
- Modulation:
- FHSS (Frequency Hopping Spread Spectrum)
- Operating Temperature:
- 0° to 120°F (-17° to 48°C)
- Operating Humidity:
- 5 to 90% RH (non-condensing)
- Dimensions:
- :
- TW205 4.5"H x 5.75"W x 1.1"D (11.43 x 14.6 x 2.79 cm)
- :
- RW205 4.8"H x 3.8"W x 1.3"D (12.19 x 9.65 x 3.3 cm)
- Weight:
- 0.82 lb (0.37 kg)
- Approvals:
- CE, C-ULus, File #E50023, FCC ID: XDTTW205206; IC: 8438ATW205206; FCC ID: XDTRW205; IC: 843A-RW205
- Warranty:
- 5 years
product series features
- Frequency Hopping Spread Spectrum wireless
- Occupancy input
- Key pad lockout - partial or full
- Local or remote sensing
- LCD display with backlight
- Fahrenheit or Celsius display
more information & related documents
Series Description
The Wave Series offers an alternative to rewiring retrofit projects. Unlike built in controls, the wireless units can be removed and reinstalled as the building floor plan changes without having to run wire or conduit. The TW205 wireless thermostat is a base level unit with basic features such as 1 heat/1 cool, 3-speed fan, and manual or auto changeover. The RW205 receiver module receives input from the TW series thermostats as well as any occupancy sensing accessory installed to drive the functions of the PTAC, PTHP, and certain fan coil applications.
Kele Description
NON-PROG 2 H / 2 C WIRELESS TSTAT
Manufacturer
Peco
WAVE Wireless 205 Series Operation Manual
