EXT-TN-550123 | Belimo | Network & Wireless

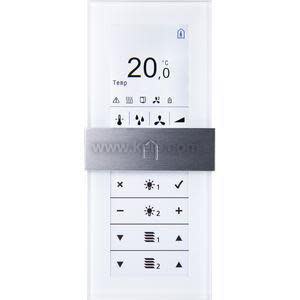

Thanos Room, Temp, Large, White, 24V, 902Mhz
Brand:Belimo
MPN:EXT-TN-550123
SKU:TH-SR-L-WH-902
product series specifications
- Supply Voltage:
- 24 VAC, ±10%; 15-25 VDC, ±10%
- Frequency:
- 902 MHz
- Range:
- Typical 70-100 ft
- Communication:
- EnOcean
- Digital Inputs:
- 4
- Display Type:
- Capacitive Touch, 3.5" TFT, 320x240 pixels, 262 colors
- Humidity Accuracy:
- ±3% (20-80% RH)
- Humidity Range:
- 0-100% RH
- Setpoint Range:
- Programmable
- Temperature Range:
- 32° to 104‚Ñâ (0° to 40‚ÑÉ)
- Temperature Accuracy:
- ±0.5K (0.9‚Ñâ)
- Interface:
- Touch screen,SD card, Anodised function clip, changeable function keypad
- Operating Temperature:
- 32° to 122‚Ñâ (0° to 50‚ÑÉ)
- Operating Humidity:
- 0 to 85% RH non condensing
- Color:
- White, Black
- Antenna:
- Internal
- Enclosure Rating:
- NEMA 1
- Dimensions:
- TH-SR-L:
- 7.76″W x 3.23″H x 0.73″D (19.7 x 8.2 x 1.9 cm)
- TH-SR-S :
- 4.96″W x 3.23″H x 0.73″D (12.6 x 8.2 x 1.9 cm)
- Weight:
- TH-SR-L:
- 1.16 lb (0.53 Kg)
- TH-SR-S:
- 0.83 lb (0.38 kg)
- Approvals:
- CE, FCC, Canada RSS, MIC, RoHS
- Warranty:
- 2 Years
product series features
- Control of automatic HVAC applications by simple touch
- Integrated temperature detection
- Optional with integrated humidity detection
- Bi-directional EnOcean Wireless Communication
- Touch surface made of glass for intuitive operation
more information & related documents
Series Description
The Thermokon EasySens Thanos is a touchscreen room operating panel designed for temperature and humidity detection as well as for integrated operation of HVAC, lighting and blind for single room control. The device is ideal for design-oriented applications. The operating functions can be flexibly adapted to the most different room layouts.
Kele Description
THANOS ROOM, TEMP, LARGE, WHITE, 24V, 902MHZ
Manufacturer
Belimo
Related Documents
EasySens Applications
