TCSMCNAM3M002P | Schneider Electric Buildings | Motor Controls

208 VAC ±15%, 230 VAC ±10%, 460 VAC ±10% Three phase

Limit 150% of nominal device full load amperage (FLA) for 60s

50 Hz -5% to 60 Hz +5%

1-100 Hp (model specific)

0.1s to 999.9s (adjustable in 0.1s increments)

0.1s to 999.9s (adjustable in 0.1s increments)

3300 ft (100m) maximum without derating

Greater than 98% at full load

2; VIA 4 to 20mA or 0V to 10V, VIB 0V to 10V, 250 ohms

3 multi-function programmable logic inputs

1; 4 to 20mA or 0V to 10V selectable, 970 ohms

1 fault relay

1 assignable SPST (N.O.) relay

2A @ 250VAC/ 30VDC

Modbus™ , BACnet®, Metasys® N2, Apogee® P1

Lonworks®

RJ45

LED Keypad with self diagnostics with fault messages in three languages

95% non condensing, IEC 60068-2-3

14° to 104℉ (-10° to 40℃) without derating

13° to 158℉ (-25° to 70℃)

NEMA 1 when used with the Type 1 conduit kit

Pollution degree 2 per NEMA ICS-1 and IEC 60664-1 UL Listed per UL508C Class 10 and 20 Conforms to NEMA, IEC, NFPA, ISO9001, UL file # E116875

18 months

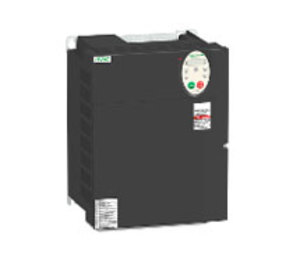

The Schneider Electric Altivar 212 VFD provides maximum ease of use and security for system integrators and end-users. Set-up, operation and maintenance are simplified with its user-friendliness and enhanced communication.

PROGRAMMING CABLE USB TO RJ45
