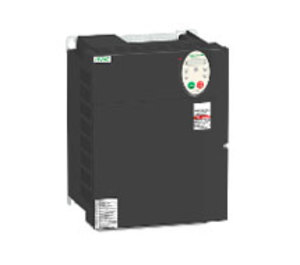

ATV212HD30N4 | Schneider Electric Buildings | Motor Controls

Supply Voltage: 208 VAC ±15%, 230 VAC ±10%, 460 VAC ±10% Three phase

Current Rating: Limit 150% of nominal device full load amperage (FLA) for 60s

Frequency: 50 Hz -5% to 60 Hz +5%

Horsepower: 1-100 Hp (model specific)

Acceleration Time: 0.1s to 999.9s (adjustable in 0.1s increments)

Deceleration Time: 0.1s to 999.9s (adjustable in 0.1s increments)

Altitude Limits: 3300 ft (100m) maximum without derating

Efficiency: Greater than 98% at full load

Analog Input: 2; VIA 4 to 20mA or 0V to 10V, VIB 0V to 10V, 250 ohms

Inputs: 3 multi-function programmable logic inputs

Analog Output: 1; 4 to 20mA or 0V to 10V selectable, 970 ohms

Outputs: 1 fault relay, 1 assignable SPST (N.O.) relay, 2A @ 250VAC/ 30VDC

Communication Protocol:

RS485 (Standard): Modbus™, BACnet™, Metasys™ N2, Apogee™ P1

Card (option): Lonworks™

Communication Ports: RJ45

Display: LED Keypad with self diagnostics with fault messages in three languages

Operating Humidity: 95% non condensing, IEC 60068-2-3

Operating Temperature: 14° to 104°F (-10° to 40°C) without derating

Storage Temperature: 13° to 158°F (-25° to 70°C)

Enclosure Rating: NEMA 1 when used with the Type 1 conduit kit

Approvals: Pollution degree 2 per NEMA ICS-1 and IEC 60664-1 UL Listed per UL508C Class 10 and 20 Conforms to NEMA, IEC, NFPA, ISO9001, UL file # E116875

Warranty: 18 months
