EOT63U3P3-P

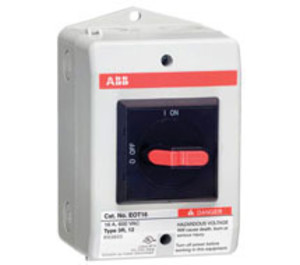

* product series image displayed

EOT63U3P3-P | ABB | Motor Controls

DISCNT SWITCH, ENCL, 80 AMP, 3 POLE, PISTOL BLK

Brand:ABB

MPN:EOT63U3P3-P

SKU:EOT63U3P3-P

List Price:

$593.78

Today's Price:

$308.77



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Contact Rating

80 A

Contact Type

Three pole

Enclosure Rating

NEMA 3R

Type

Switch

Voltage

600 VAC

product series specifications

    Switching Voltage:
  • See hp table below; 3-Phase
    Auxiliary Contacts (optional):
    Max. number allowed:
  • 1-SPST per order, 300VDC @ 1A, 600VAC @ 10A; 2NO + 1NC
    Wiring:
    EOT16 & EOT32:
  • 8-18 AWG Terminals
    EOT45 & EOT63:
  • 4-14 AWG Terminals
    Auxillary:
  • 14-18 AWG Terminals
    Mounting:
  • Tabs top and bottom, 4 knockouts
    Enclosure Rating:
  • NEMA 3R/12
    Dimensions, Including Handle:
    :
  • EOT16 & EOT32 6.36‚Ä=H x 3.94‚Ä=W x 4.55‚Ä=D (16.2 x 10 x 11.6 cm)
    :
  • EOT45 7.87‚Ä=H x 5.75‚Ä=W x 5.43‚Ä=D (19.8 x 14.6 x 18.8 cm)
    :
  • EOT63 11.81‚Ä=H x 8.27‚Ä=W x 7.12‚Ä=D (30 x 21 x 181 cm)
    Approvals:
  • UL Listed E63822, IEC947-3, UL 508
    Meets ARRA or BAA:
  • Yes
    Warranty:
  • 1 year
    Note: Only 1 additional pole per switch allowed:

product series features

  • Suitable as motor disconnect
  • Horsepower rated
  • Touch safe construction
  • Positive operation
  • Clear position indication
  • Self lifting tunnel terminals
  • Extremely compact size
  • Accessories include 4th Power Pole and Snap-on auxiliary contacts
  • OSHA Lock Out/Tag Out

more information & related documents

Series Description

The ABB EOT Series of enclosed manual motor controllers are rotary operated, 3 pole, 600V HP rated switches, housed in thermoplastic/polycarbonate enclosures suitable for wet and corrosive environments. These NEMA 3R/12 models are equipped with selector style handles. They are compact in size have touch safe operation. cUL/IEC-47-3 approvals and UL508 listed.

Kele Description

DISCNT SWITCH, ENCL, 80 AMP, 3 POLE, PISTOL BLK

Manufacturer

ABB
