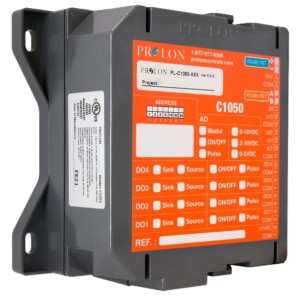

PL-C1050-BLR | Prolon | Thermostats & Controllers
BOILER CONTROLLER 4 IN / 5 OUT
Brand:Prolon
MPN:PL-C1050-BLR
SKU:PL-C1050-BLR
List Price:
$747.09
Today's Price:
$343.55
Log in for customized pricingproduct series specifications
Supply: 24 VAC +/-10%, 50/60 Hz, Class 2
Power: 2VA (consumption), 32 VA (input)
Digital Outputs: 4 triac outputs, 10-30 VAC source or sink, 300 mA max (resettable fuse)
Analog Output: 1 output 0-10 VDC / 2-10 VDC / 0-5 VDC, 40 mA max (self-resetting fuse)
Indication Lights (LED): State of each output, Communication, Supply, State of microprocessor
product series features
- Standalone or networked (up to 127 nodes)
- 4 digital outputs and 1 analog output equipped with resettable fuses
- Remote monitoring and configuration with FREE Prolon Focus software
more information & related documents
Series Description
The PL-C10X0 controllers are designed to control a variety of different HVAC units and systems. The on-board microcontroller offers precise digital control to maximize performance. The available control sequences are fully configurable, either locally or remotely, using free software.
Kele Description
BOILER CONTROLLER 4 IN / 5 OUT
Manufacturer
Prolon
Related Documents
PL-C10X0 Series Datasheet
