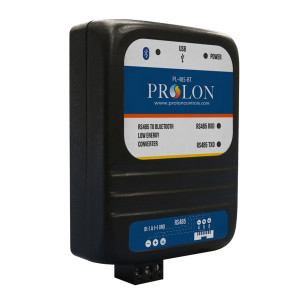

* product series image displayed

PL-485-BT | Prolon | Thermostats & Controllers

BLUETOOTH 4.0 TO RS485 ISOLATED CONVERTER

Brand:Prolon

MPN:PL-485-BT

SKU:PL-485-BT

List Price:

$565.10

Today's Price:

$293.85

product series specifications

Wireless:

Bluetooth Low Energy v.4.0, GFSK Protocol, 2.4 GHz, 1 Mbps

Bluetooth Range:

Up to 330 ft. (100 m)

RS-485:

2-Wire with removable terminal block and RJ45 jack

Baud rates:

Configurable 9600, 19200, 38400, 57600 (default), 115200 bps

USB:

USB 2.0, Connector Type B, Isolated from RS485

Battery:

Lithium-Ion 3.7V, UL Certified

Antenna:

Internal (PCB Trace)

Dimensions:

4” x 3” x 1.25” (102 mm x 76 mm x 32 mm)

Weight:

0.45 lbs (0.20 kg)

Environment:

-40 to 185 °F (-40 to 85 °C) non-condensing

product series features

Bluetooth 4.0, also known as Bluetooth LE (Low Energy), for reduced battery consumption.
Built-in LEDs for RS485 transmit and receive, power status and Bluetooth activity.
Removable screw type terminal block for DATA+, DATA and GND terminals.
Custom RJ45 jack for plug-and-play connection to Prolon controllers.
USB electrically isolated from RS485 to prevent potentially hazardous ground loops.
Constant communication for approximately 15 hours on a single charge.
Empty battery fully charges in 2 to 3 hours.
No battery consumption when power switch off.
Factory reset, passkey modification and more all available over software.

more information & related documents

Series Description

The PL-485-BT is a Bluetooth 4.0 to RS485 converter. Its main purpose is to allow any smartphone or tablet to view and configure a Prolon control system, using Prolon’s free Focus software application. The PL-485-BT also acts as a general purpose USB to RS485 converter for use with PC.

Kele Description

Bluetooth 4.0 to RS485 isolated converter

Manufacturer

Prolon
