TR120-H | Honeywell | Temperature Sensors & Transmitters

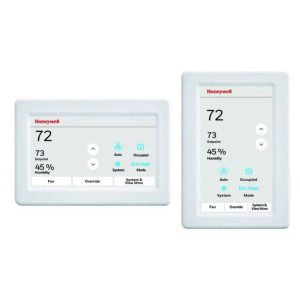

Color Touchscreen Sylk Bus Wall Module

Brand:Honeywell

MPN:TR120-H

SKU:TR120-H

List Price:

$1,122.00

Today's Price:

$583.44

product datasheet

product series specifications

Display: Resistive LCD Touch Screen

Operating Temperature: 32 to 122 °F (-0 to 50 °C)

Storage Temperature: -4 to 158 °F (-20 to 70 °C)

Relative Humidity: 5% to 95% non-condensing

Power Supply/Consumption: 18 VDC from controller Sylk bus, 50 mA maximum

product series features

Home screen can display one to three of any of the following parameters: Temperature Setpoint, Room Temperature, Room Humidity, Outdoor Humidity, Outdoor Temperature, and Time, or one of virtually any parameter in the controller
Vertical or horizontal orientation
Restricted tenant access to controller parameters or imposed HVAC settings limits via password protection
Assign labels for enumerated values
Link setpoint limits to a network variable
Access and adjust the controller schedule
Permanent retention of user configuration, including setpoints after a power outage

more information & related documents

Series Description

The TR120/TR120-H are color touch screen wall modules compatible with Spyder Classic, Stryker, and CIPer 30 controllers. The wall module communicates and is powered by the Sylk bus, so no additional wiring is needed. All versions include integral temperature and the TR120-H adds a humidity sensor to control comfort. The device enables local controller configuration through an easy to use touch screen interface with menu driven selections.

Kele Description

Color Touchscreen Sylk Bus Wall Module
